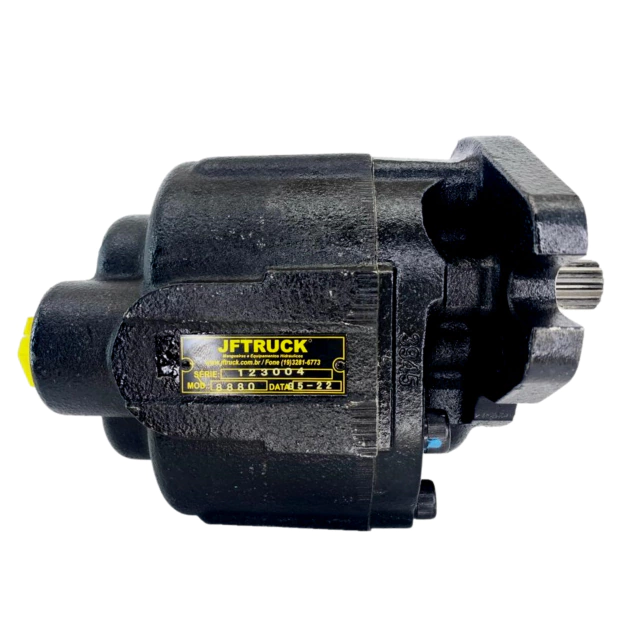

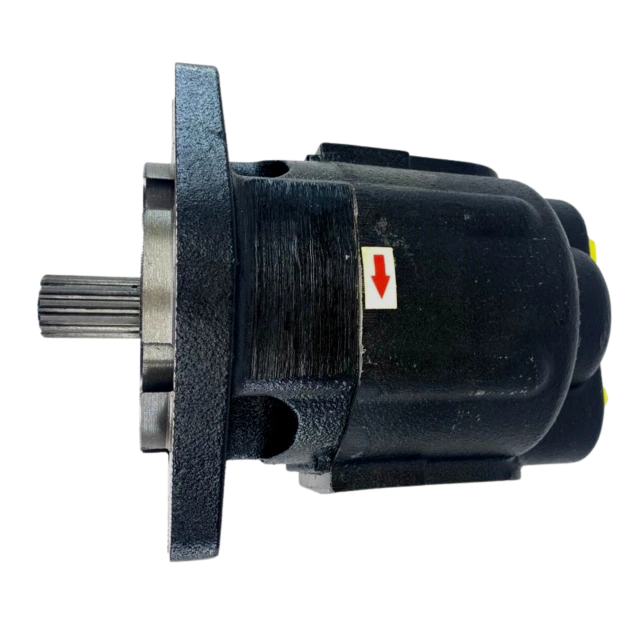

Hydraulic Gear Pump 80 L/min · 230 bar · SAE B · CW
Part no. 01598
Clockwise version of our SAE B dump pump, 80 L/min (21 GPM) at 230 bar (3,336 PSI).
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
Same heavy-duty bushing construction as the counterclockwise model, built for clockwise PTO rotation. SAE B 13-tooth spline. If you are replacing an existing pump, match the rotation stamped on the old housing — rotation is the single most common ordering mistake on dump pumps.
Specifications
- Drive shaft
- 13-tooth spline
- Inlet
- 1" BSP
- Flange

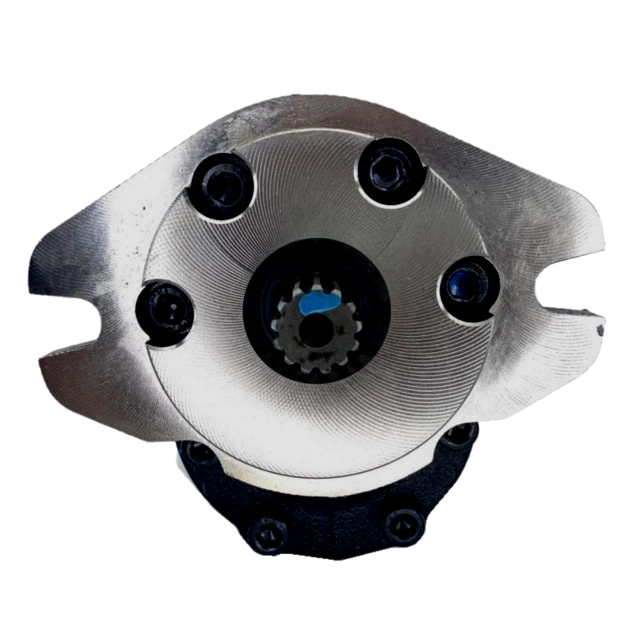

- SAE B 13-tooth spline
- Outlet
- 3/4" BSP
- Capacity
- 80 L/min (21 GPM)
- Pressure
- 230 bar (3,336 PSI)
- Rotation
- Clockwise (CW)
- Actuation type
- Without actuation
- Application
- Tandem-axle dump trucks and dump semi-trailers with multi-stage cylinders
