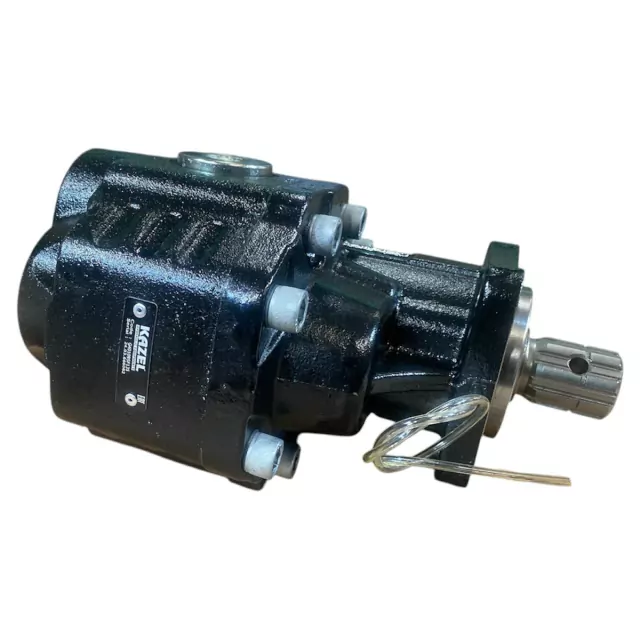

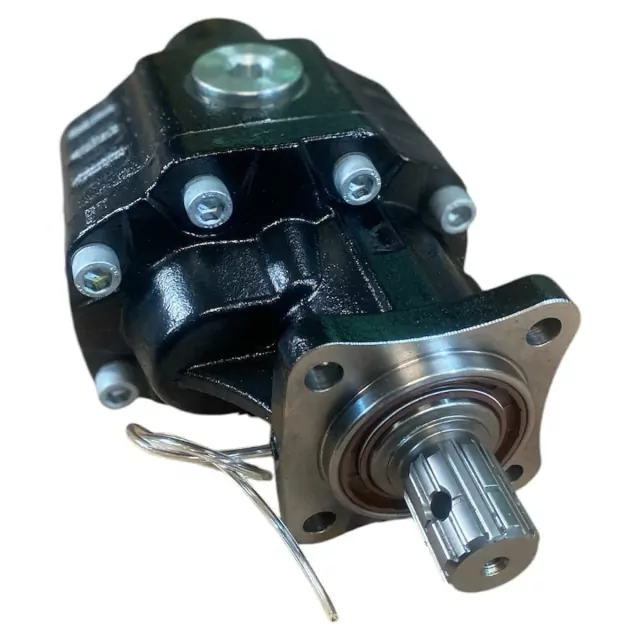

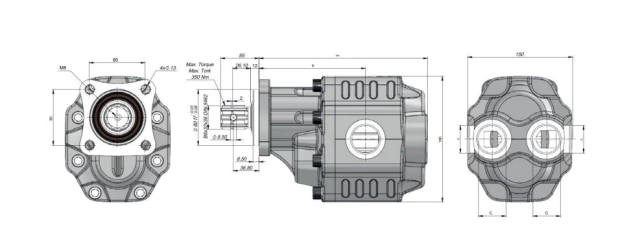

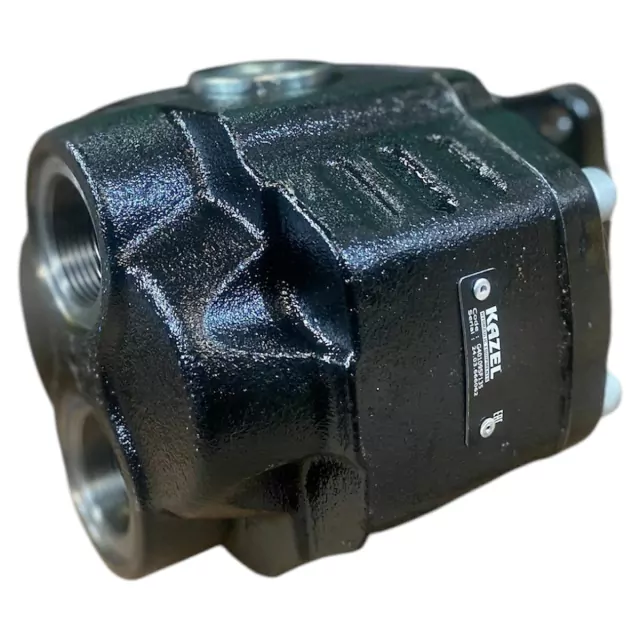

Kazel Walking Floor Gear Pump 109 L/min
High-flow gear pump for walking floor trailers, 109 L/min (29 GPM), with case drain.
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
Walking floor trailers need sustained high flow rather than the short high-pressure bursts a dump body sees, and this pump is sized for that duty. Kazel G40109SF135 with case drain port. If you are specifying a new walking floor system, confirm the flow your floor drive requires before choosing a pump.
Specifications
- Mounting
- Euro 8-tooth spline
- Direction of rotation
- Bi-directional
- Outlets
- Side
- Displacement
- 109 L/min (29 GPM)
- Max. continuous pressure
- 250 bar (3,626 PSI)
- RPM
- 300
- Max. speed
- 1800
- Port sizes
- 1¼"
- Fluid temperature
- -40°C to 145°C (-40°F to 293°F)
- Viscosity range
- 12–100 cSt
