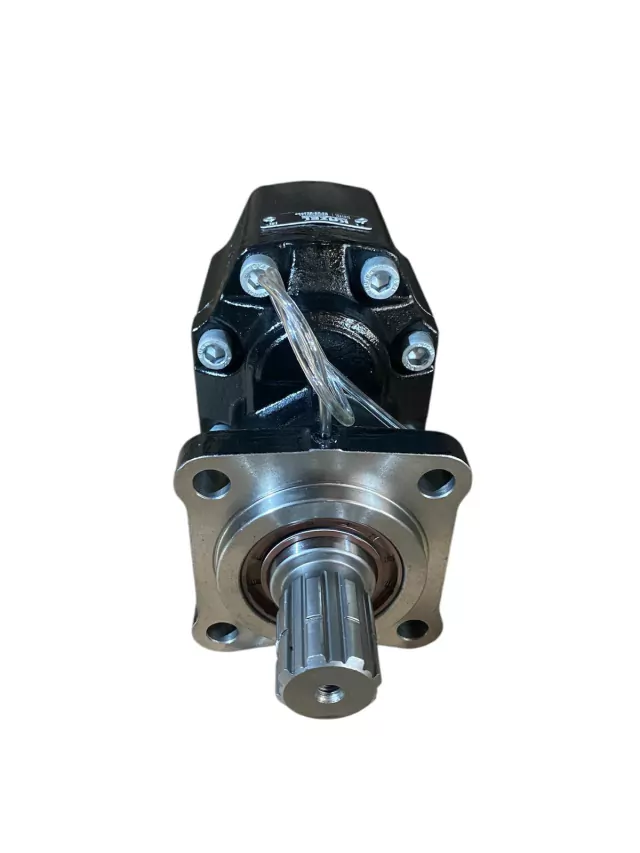

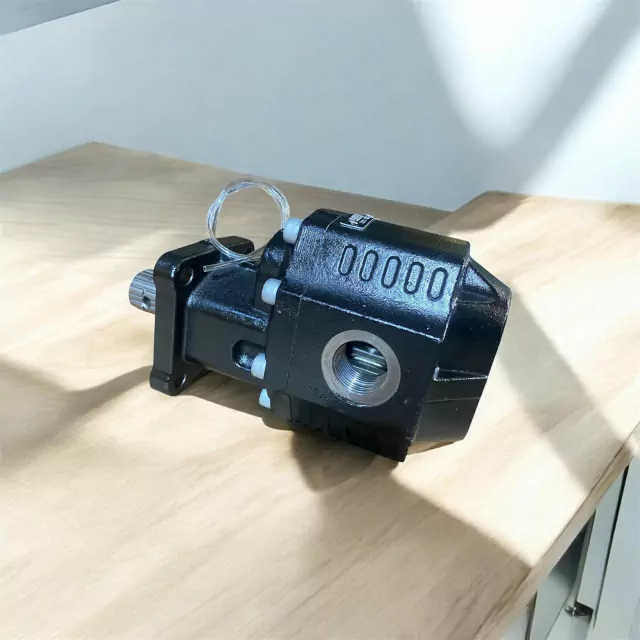

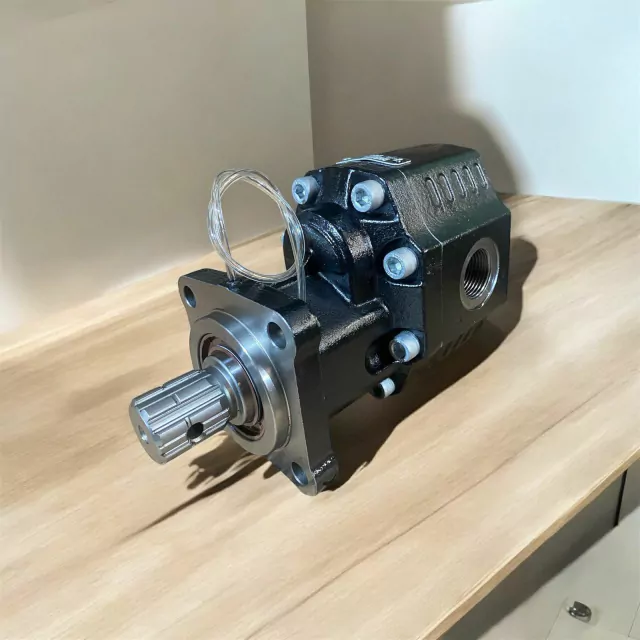

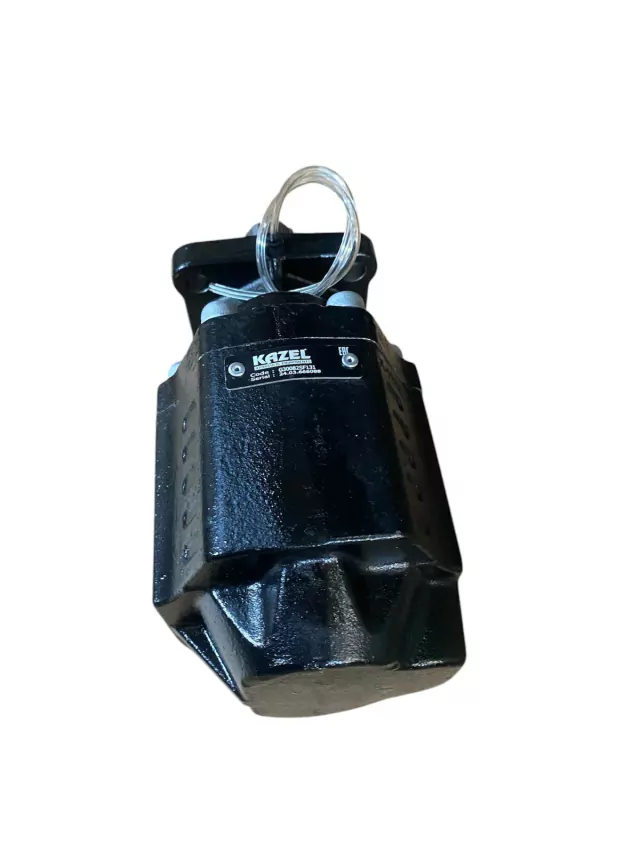

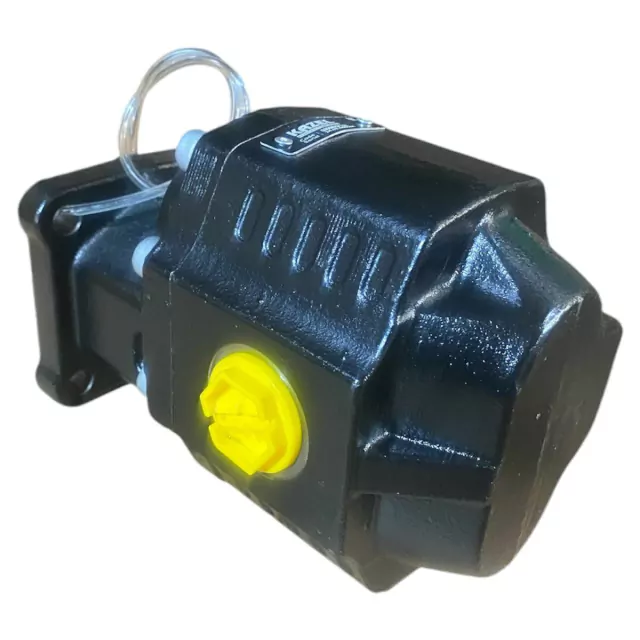

Kazel Gear Pump 82 L/min · 180 bar · 8-Tooth · With Drain
Kazel G30082SF131 gear pump, 82 L/min (22 GPM) at 180 bar (2,611 PSI), with case drain port.
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
Built for multi-axle dump combinations and heavy tipping trailers. The case drain port relieves pressure behind the shaft seal, which is what lets this pump survive long continuous cycles instead of pushing oil past the seal. Genuine Kazel part, 8-tooth spline input.
Specifications
- Direction of rotation
- Bi-directional
- Outlets
- Side
- Displacement
- 82 L/min (22 GPM)
- Max. continuous pressure
- 180 bar (2,611 PSI)
- RPM
- 300
- Max. speed
- 1500
- Port sizes
- 1"
- Fluid temperature
- -40°C to 145°C (-40°F to 293°F)
- Viscosity range
- 12–100 cSt
