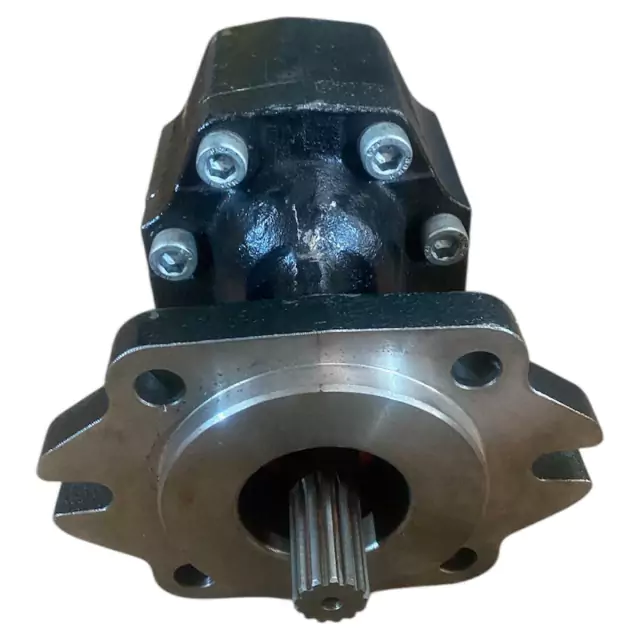

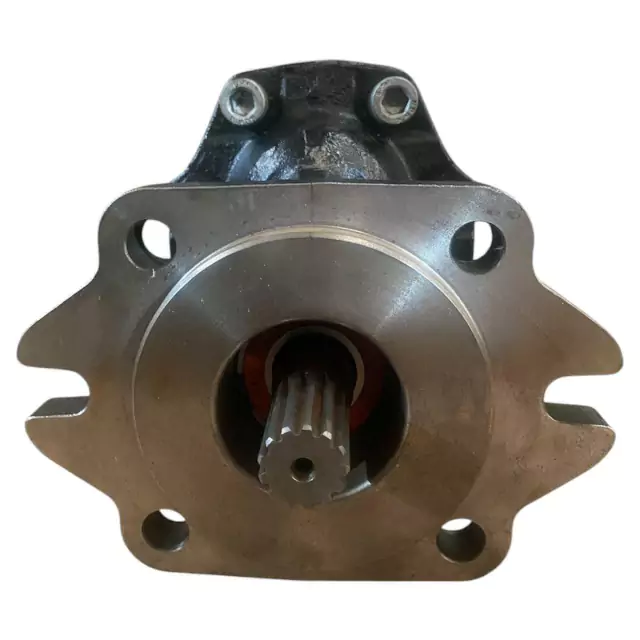

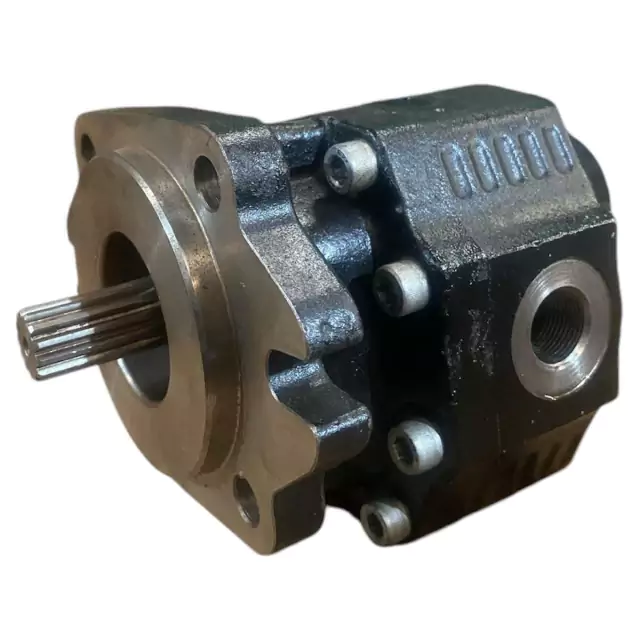

Kazel Gear Pump 51 L/min · 200 bar · 13-Tooth
Kazel G30051BF531 gear pump for knuckle boom cranes, hooklifts and truck-mounted cranes, 51 L/min (13 GPM) at 200 bar (2,901 PSI).
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
Sized for crane and hooklift circuits rather than dump bodies — moderate flow at higher working pressure, which is what a boom or hook arm needs to hold load under control. Genuine Kazel part, SAE B 13-tooth spline input.
Specifications
- Mounting
- SAE B 13-tooth spline
- Direction of rotation
- Bi-directional
- Outlets
- Side
- Displacement
- 51 L/min (13 GPM)
- Max. continuous pressure
- 200 bar (2,901 PSI)
- RPM
- 300
- Max. speed
- 1800
- Port sizes
- 3/4"
- Fluid temperature
- -40°C to 145°C (-40°F to 293°F)
- Viscosity range
- 12–100 cSt
Related products
Parts commonly specified alongside this one.
Gear Pumps
Kazel Gear Pump 82 L/min · 180 bar · 8-Tooth · With Drain
Kazel G30082SF131 gear pump, 82 L/min (22 GPM) at 180 bar (2,611 PSI), with case drain port.
Direction of rotation:Bi-directional
Gear Pumps
Kazel Walking Floor Gear Pump 109 L/min
High-flow gear pump for walking floor trailers, 109 L/min (29 GPM), with case drain.
Mounting:Euro 8-tooth spline
Gear Pumps

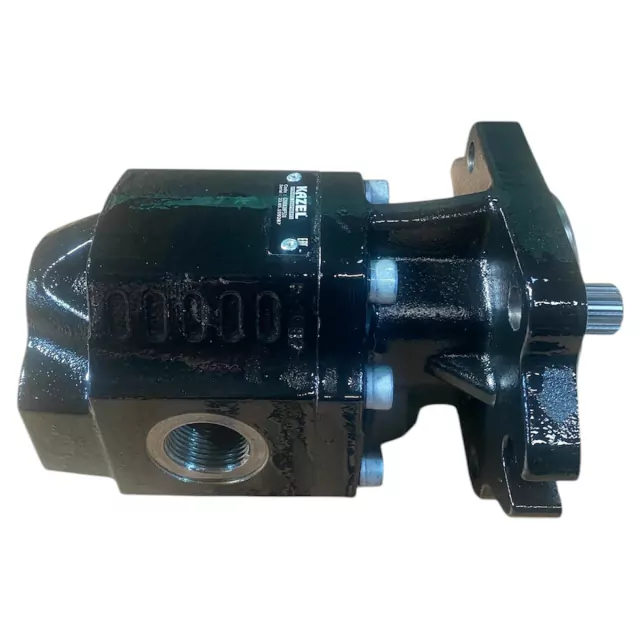

Kazel Gear Pump 82 L/min · SAE B · Bi-Rotational
