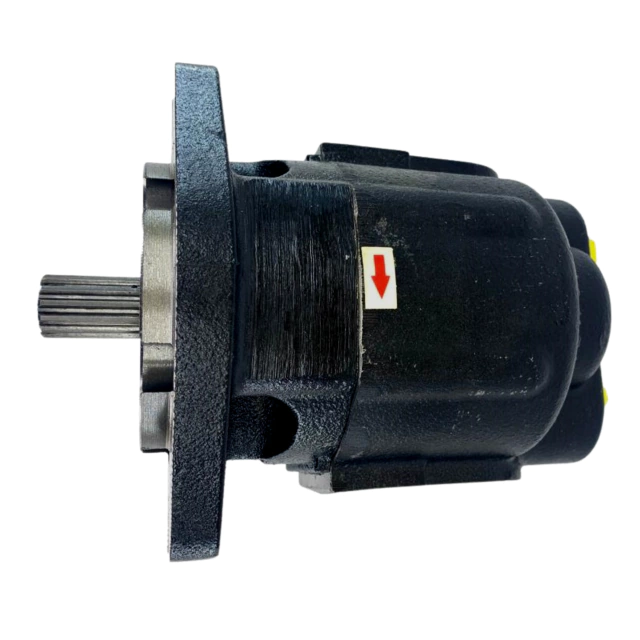

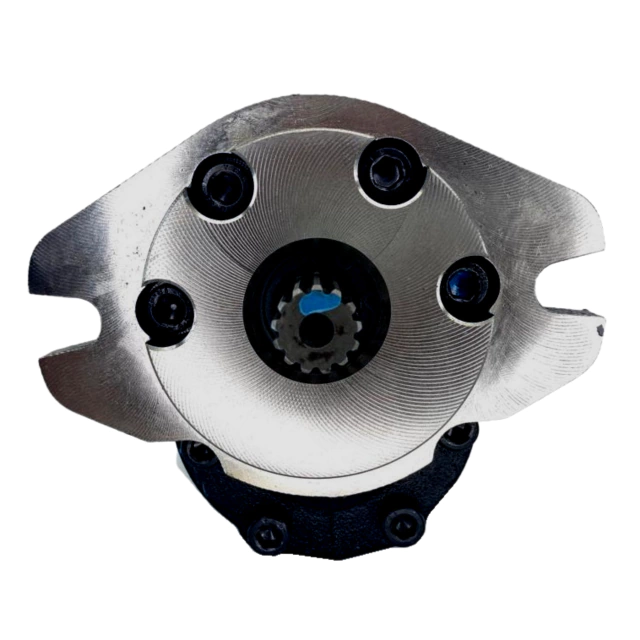

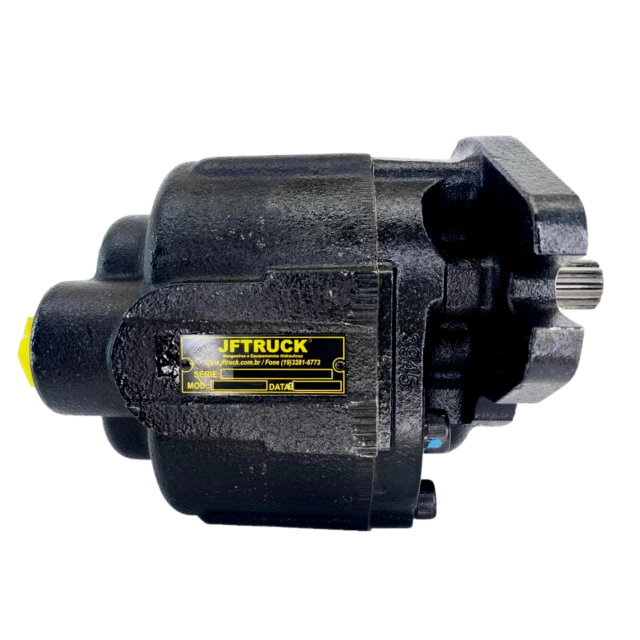

Hydraulic Gear Pump 80 L/min · 230 bar · SAE B · CCW
Part no. 05507
Heavy-duty bushing-type gear pump with SAE B 13-tooth spline, 80 L/min (21 GPM) at 230 bar (3,336 PSI).
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
The SAE B 13-tooth version of our 80 L/min dump pump — the mounting standard used on most North American truck PTOs. Bushing construction means fewer internal parts and longer life than a comparable bearing pump. Counterclockwise rotation. Check your PTO rotation before ordering.
Specifications
- Drive shaft
- 13-tooth spline
- Inlet
- 1" BSP
- Flange
- SAE B 13-tooth spline
- Outlet
- 3/4" BSP
- Capacity
- 80 L/min (21 GPM)
- Pressure
- 230 bar (3,336 PSI)
- Rotation
- Counterclockwise (CCW)
- Actuation type
- Without actuation
- Application
- Tandem-axle dump trucks and dump semi-trailers with multi-stage cylinders
Related products
Parts commonly specified alongside this one.

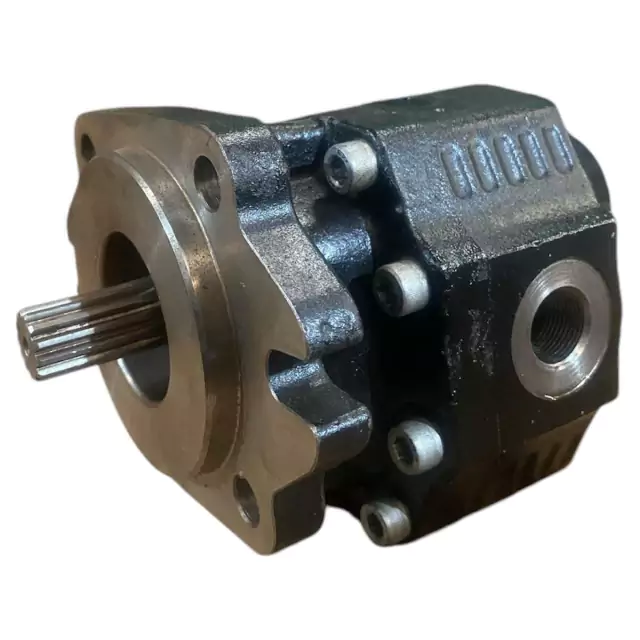

Kazel Gear Pump 51 L/min · 200 bar · 13-Tooth
Kazel G30051BF531 gear pump for knuckle boom cranes, hooklifts and truck-mounted cranes, 51 L/min (13 GPM) at 200 bar (2,901 PSI).

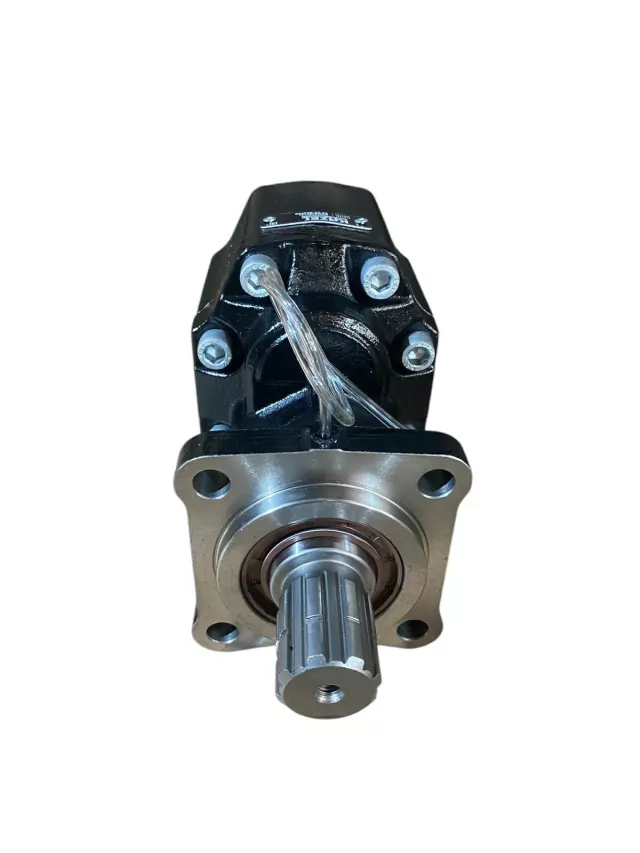

Kazel Gear Pump 82 L/min · 180 bar · 8-Tooth · With Drain
Kazel G30082SF131 gear pump, 82 L/min (22 GPM) at 180 bar (2,611 PSI), with case drain port.

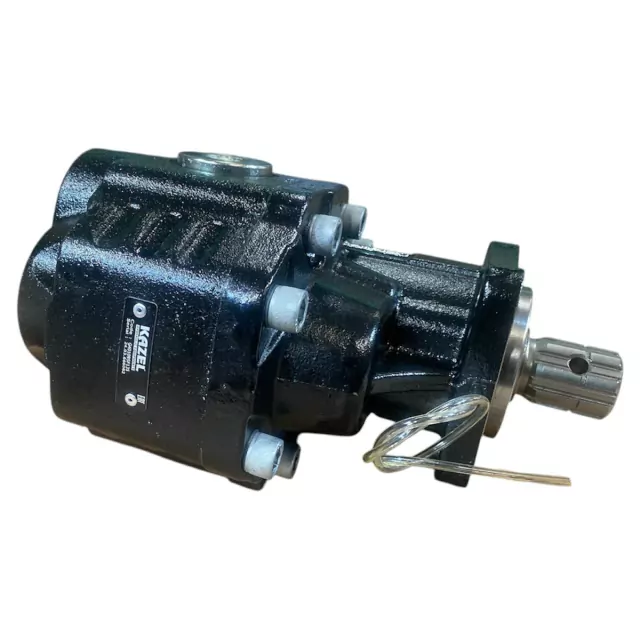

Kazel Walking Floor Gear Pump 109 L/min
