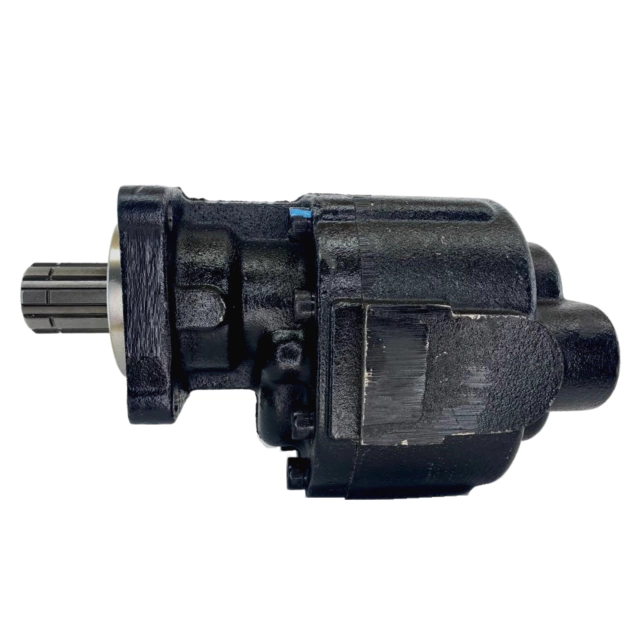

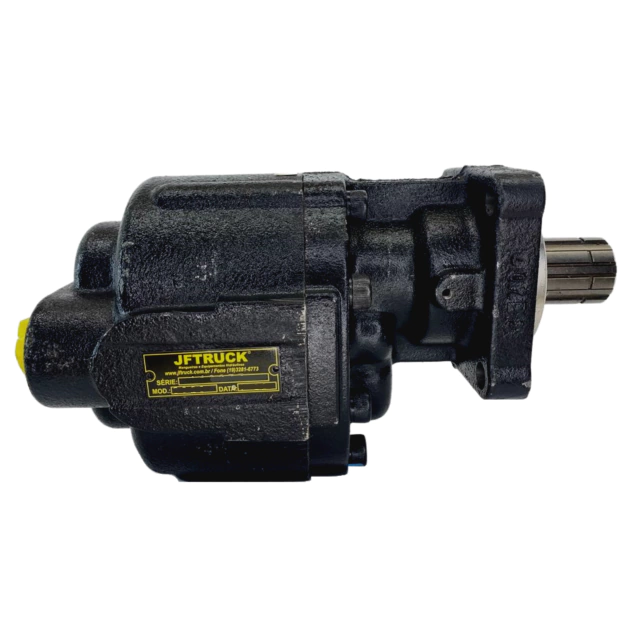

Hydraulic Gear Pump 80 L/min · 230 bar · Euro Spline · CCW
Part no. 06027
Heavy-duty bushing-type gear pump for dump bodies, rated 80 L/min (21 GPM) at 230 bar (3,336 PSI).
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
Direct-mount gear pump built for continuous dump-body duty. The bushing design uses fewer internal components than a bearing pump, which means less to wear and a longer service life under the load cycles of a tipping trailer. Euro 8-tooth spline input, counterclockwise rotation. Confirm your PTO rotation and spline before ordering — a pump turned the wrong way will not build pressure.
Specifications
- Inlet
- 1"
- Flange
- Euro 8-tooth spline
- Outlet
- 3/4"
- Capacity
- 80 L/min (21 GPM)
- Pressure
- 230 bar (3,336 PSI)
- Rotation
- Counterclockwise (CCW)
- Application
- Tandem-axle dump trucks and dump semi-trailers with multi-stage cylinders
