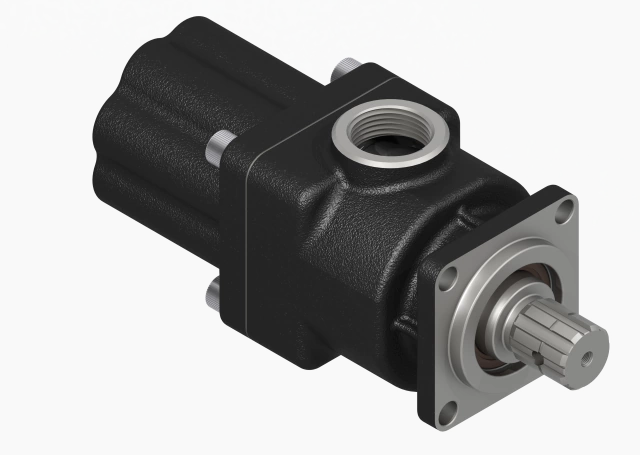

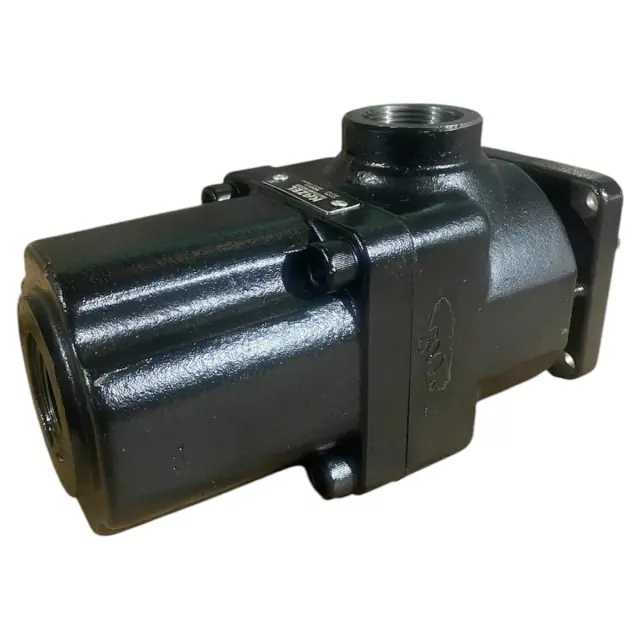

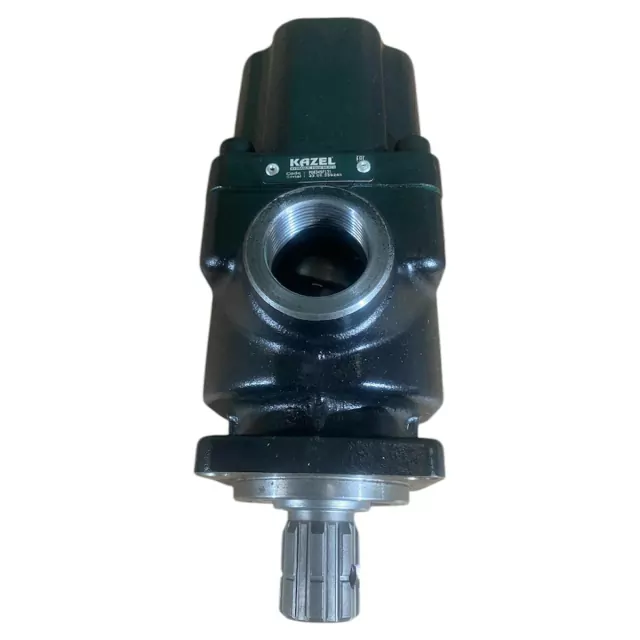

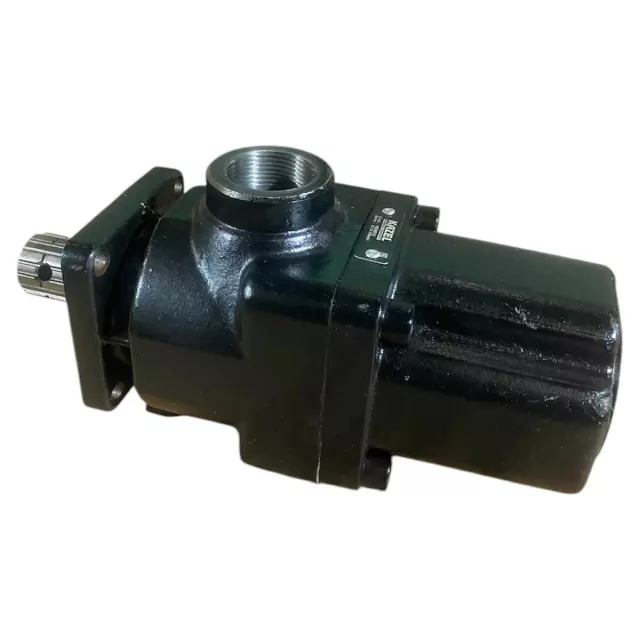

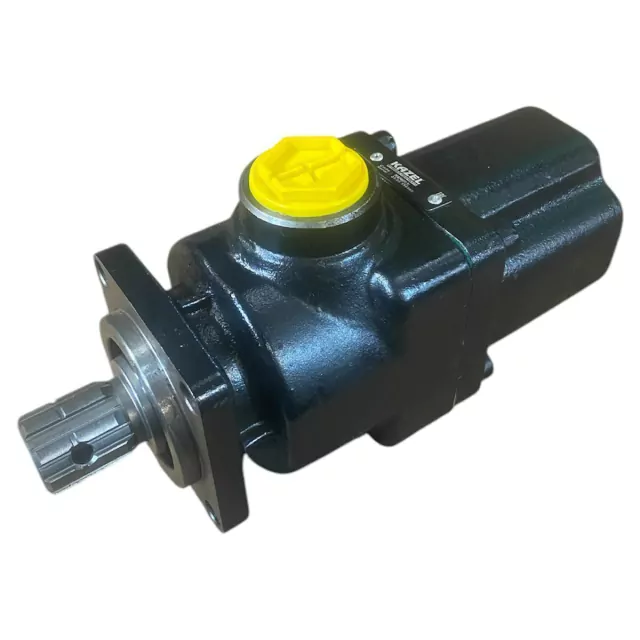

Axial Piston Pump 60 L/min
Top of the axial piston range at 60 L/min (16 GPM), genuine Kazel part.
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
The highest flow in our straight axial piston line, for the most demanding crane and lift circuits. Genuine Kazel part. At this flow, verify that your reservoir is sized to let the oil settle and cool between cycles — an undersized tank is what usually kills a pump of this class.
Specifications
- Kazel part number
- P0860SF131
- Mounting
- Euro 8-tooth spline
- Direction of rotation
- Bi-directional
- Outlets
- Rear and side
- Displacement
- 60 L/min (16 GPM)
- Max. continuous pressure
- 300 bar (4,351 PSI)
- RPM
- 300
- Max. speed
- 1500
- Port sizes
- Side 1¼" · Rear 1"
