Piston Pumps

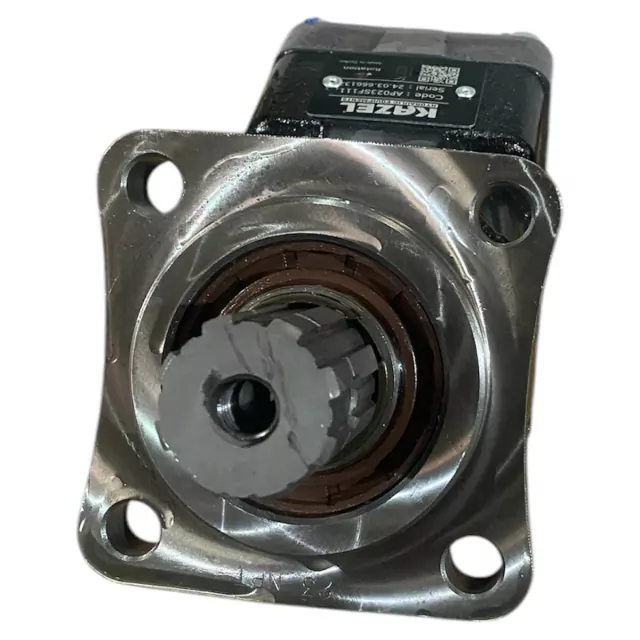

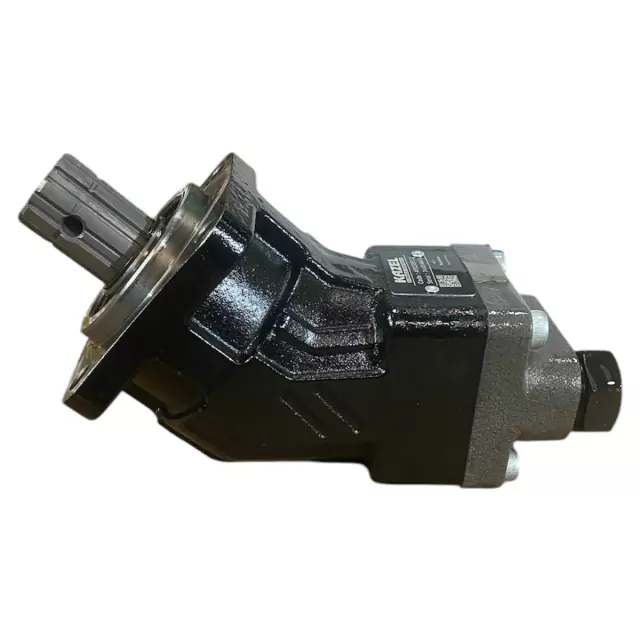

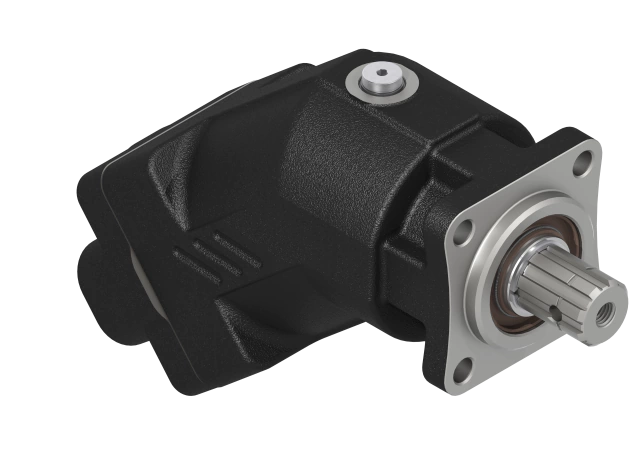

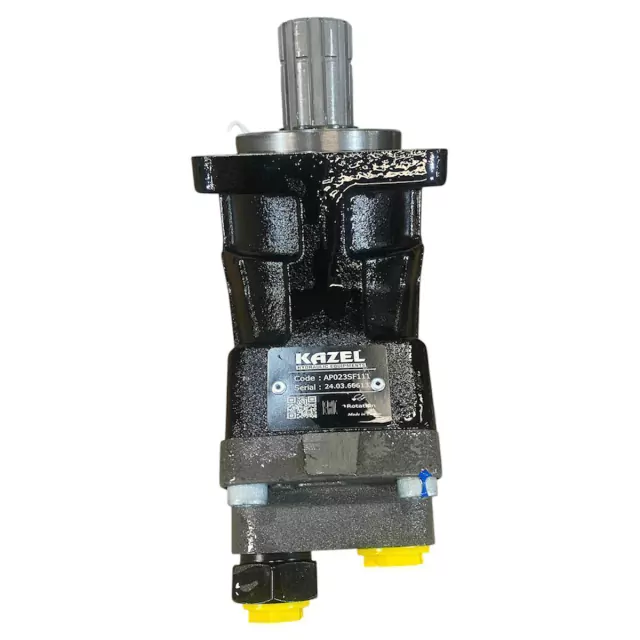

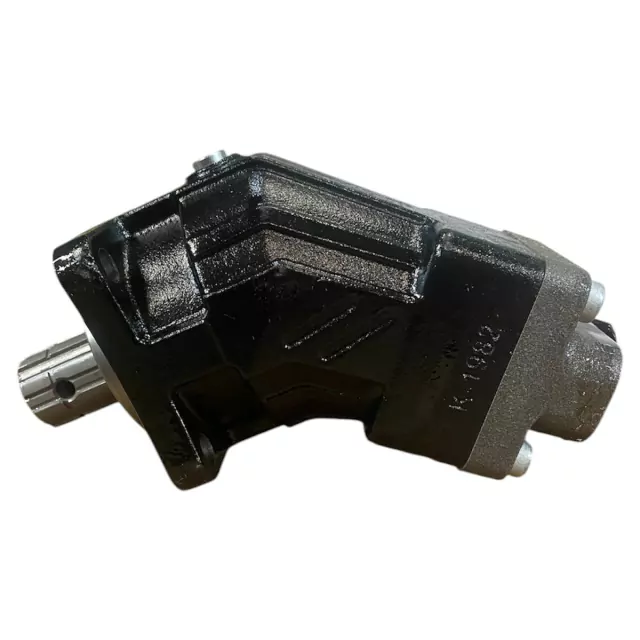

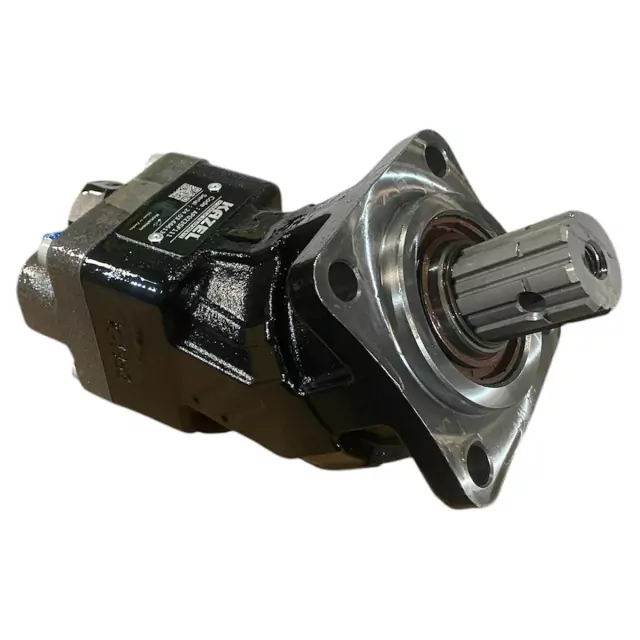

Bent-Axis Piston Pump 23 L/min · CCW
Kazel AP023SF121 bent-axis piston pump, 23 L/min (6 GPM), counterclockwise.
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
Bent-axis pumps put the pistons at an angle to the drive shaft, which lets a compact housing carry high pressure — useful where there is no room for a straight axial pump. Genuine Kazel part. Counterclockwise rotation; confirm your PTO direction before ordering.
Specifications
- Kazel part number
- AP023SF111
- Mounting
- Euro 8-tooth spline
- Direction of rotation
- Counterclockwise (CCW)
- Outlets
- Rear
- Displacement
- 23 L/min (6 GPM)
- Max. continuous pressure
- 350 bar (5,076 PSI)
- RPM
- 400
- Max. speed
- 4300

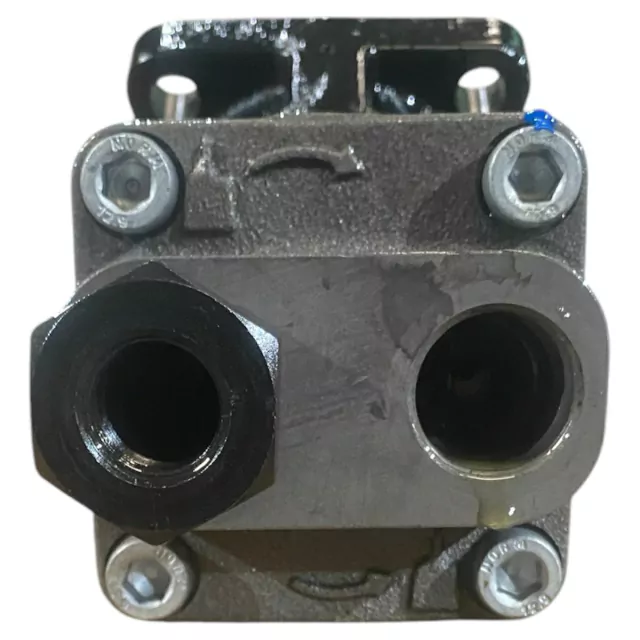

- Port sizes
- Pressure 3/4" · Suction 1/2"
Related products
Parts commonly specified alongside this one.
Piston Pumps
Bent-Axis Piston Pump 23 L/min · CW
Kazel AP023SF111 bent-axis piston pump, 23 L/min (6 GPM), clockwise. Genuine Kazel, manufactured in Turkey.
Kazel part number:AP023SF121
Piston Pumps
Bent-Axis Piston Pump 45 L/min · CCW
Kazel AP045SF121 bent-axis piston pump, 45 L/min (12 GPM), counterclockwise. Genuine Kazel, manufactured in Turkey.
Kazel part number:AP045SF111
Piston Pumps

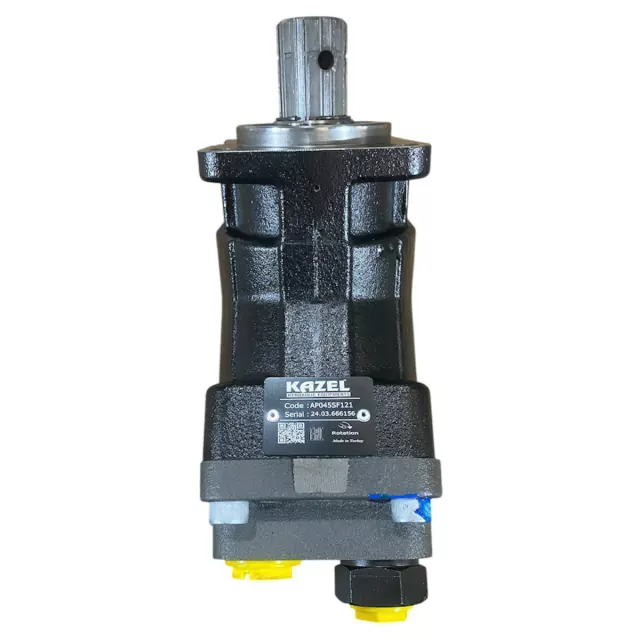

Bent-Axis Piston Pump 45 L/min · CW
