Piston Pumps

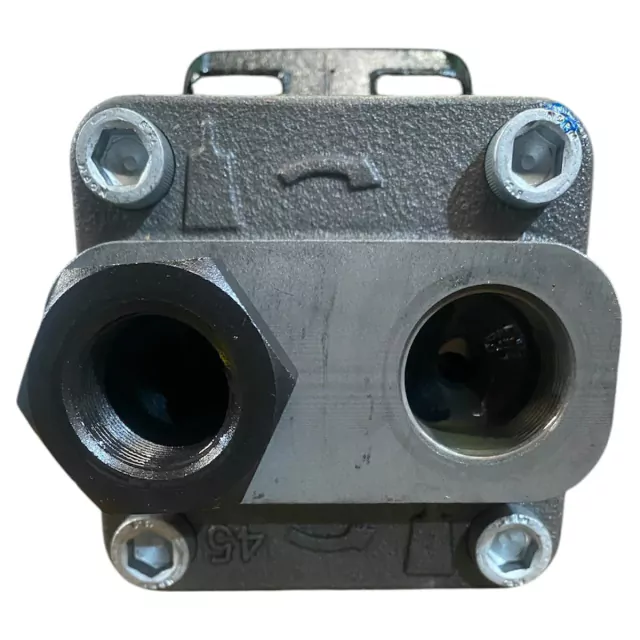

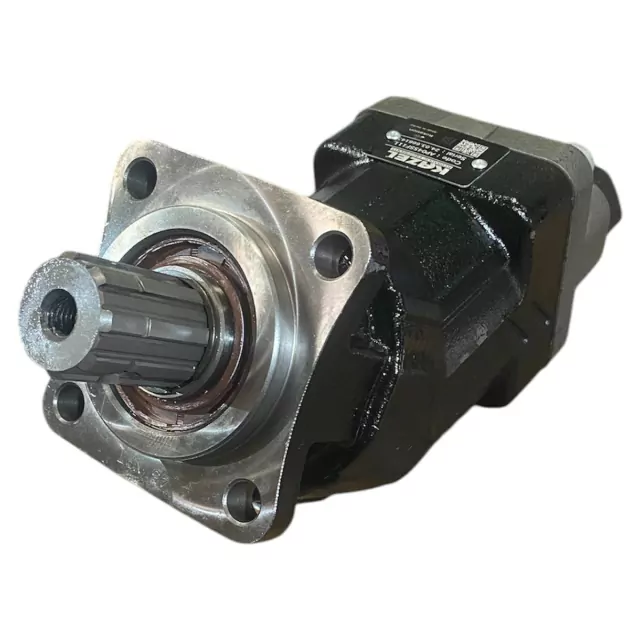

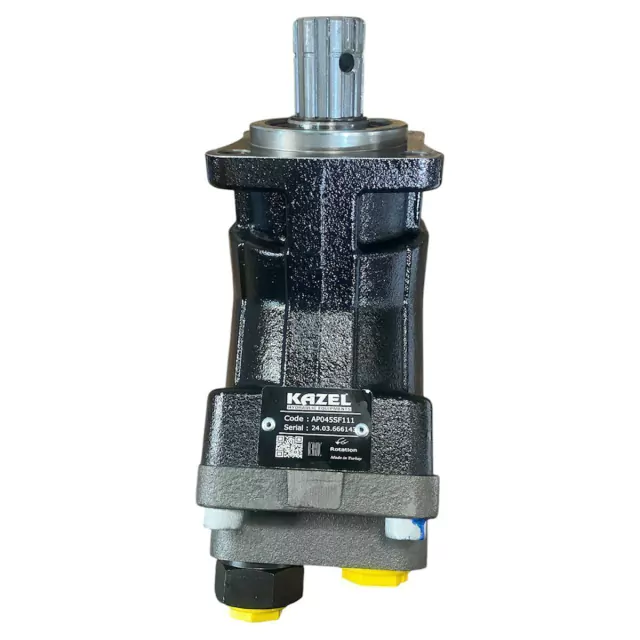

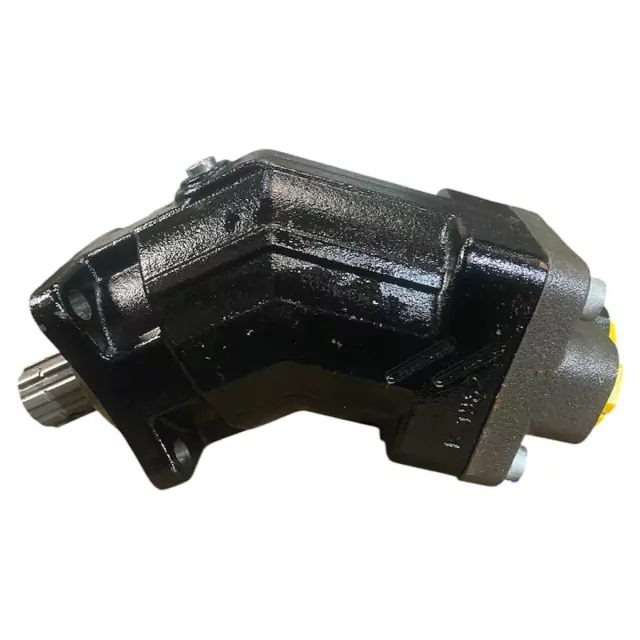

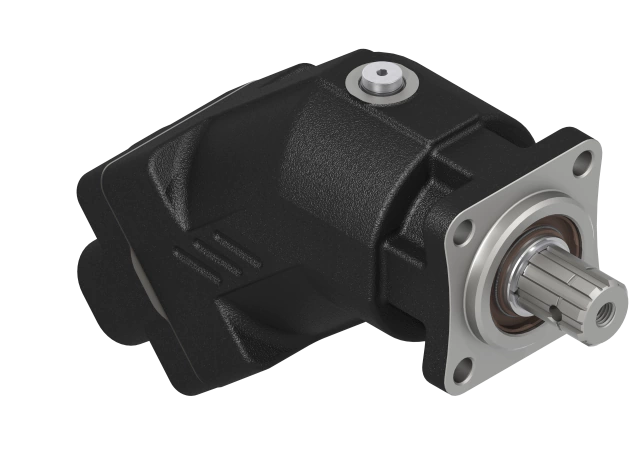

Bent-Axis Piston Pump 45 L/min · CCW
Kazel AP045SF121 bent-axis piston pump, 45 L/min (12 GPM), counterclockwise. Genuine Kazel, manufactured in Turkey.
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
The 45 L/min bent-axis pump doubles the flow of the 23 L/min model while keeping the same compact geometry. Genuine Kazel product manufactured in Turkey. Counterclockwise rotation.
Specifications
- Kazel part number
- AP045SF111
- Mounting
- Euro 8-tooth spline
- Direction of rotation
- Counterclockwise (CCW)
- Outlets
- Rear
- Displacement
- 45 L/min (12 GPM)
- Max. continuous pressure
- 350 bar (5,076 PSI)
- RPM
- 400
- Port sizes
- Pressure 3/4" · Suction 1"
