Piston Pumps

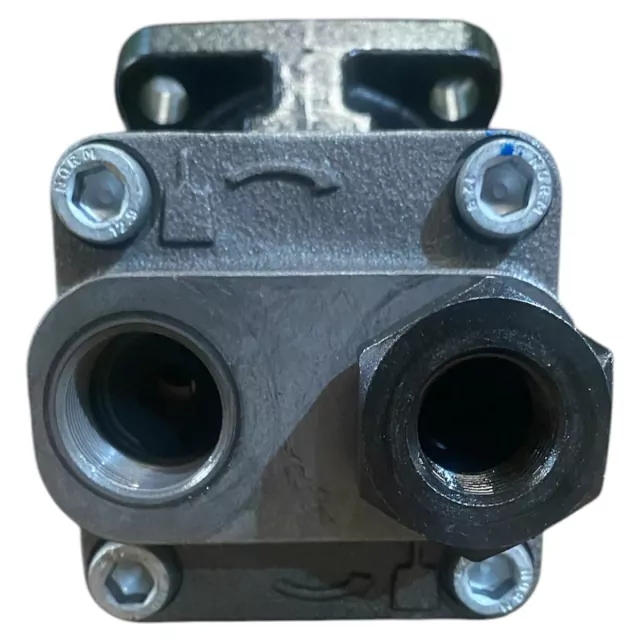

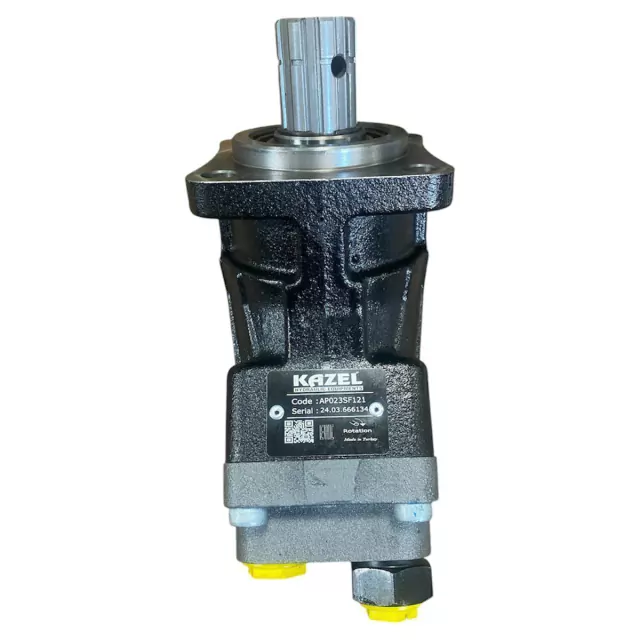

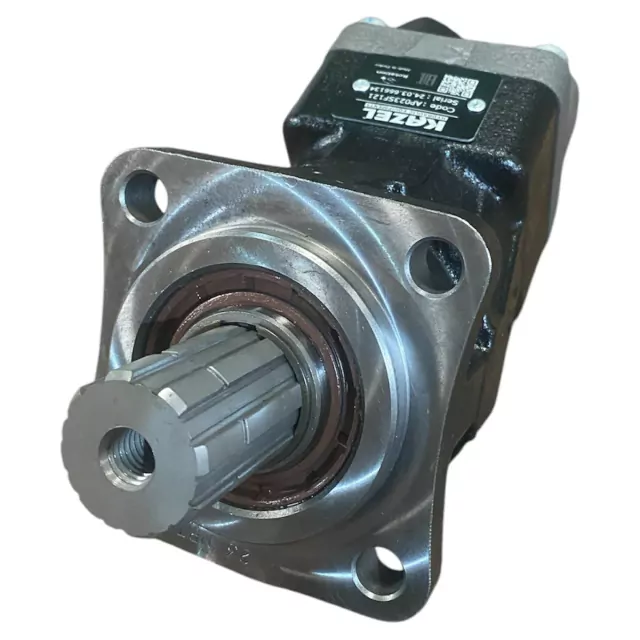

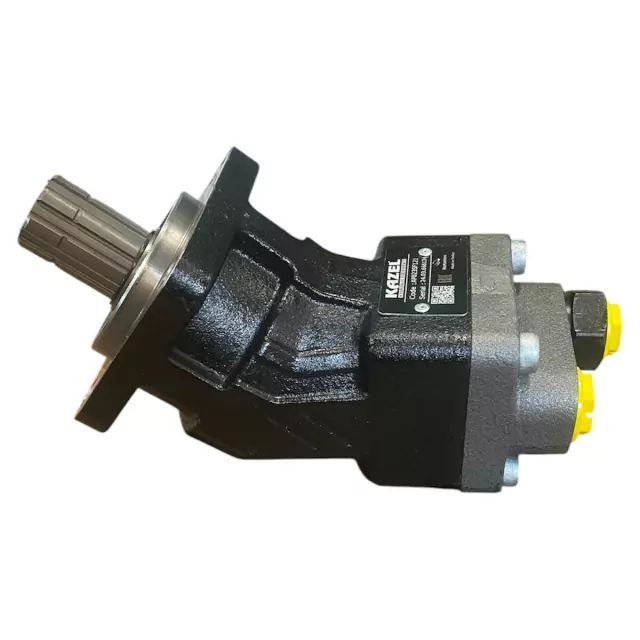

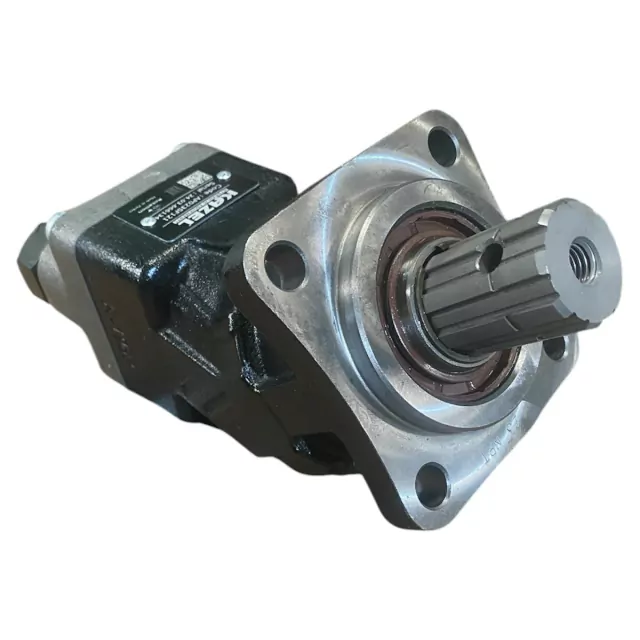

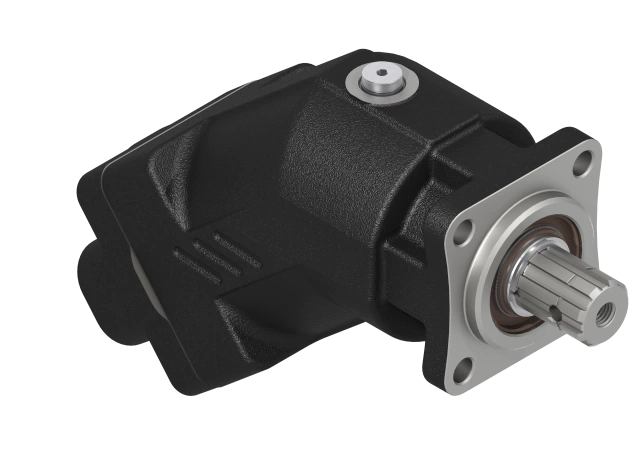

Bent-Axis Piston Pump 23 L/min · CW
Kazel AP023SF111 bent-axis piston pump, 23 L/min (6 GPM), clockwise. Genuine Kazel, manufactured in Turkey.
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
Clockwise version of the compact 23 L/min bent-axis pump. Genuine Kazel product manufactured in Turkey. The bent-axis layout carries high pressure in a small housing, which is why it is the common choice on tight truck-mounted installations.
Specifications
- Kazel part number
- AP023SF121
- Mounting
- Euro 8-tooth spline
- Direction of rotation
- Clockwise (CW)
- Outlets
- Rear
- Displacement
- 23 L/min (6 GPM)
- Max. continuous pressure
- 350 bar (5,076 PSI)
- RPM
- 400
- Max. speed
- 4300
- Port sizes
- Pressure 3/4" · Suction 1/2"
