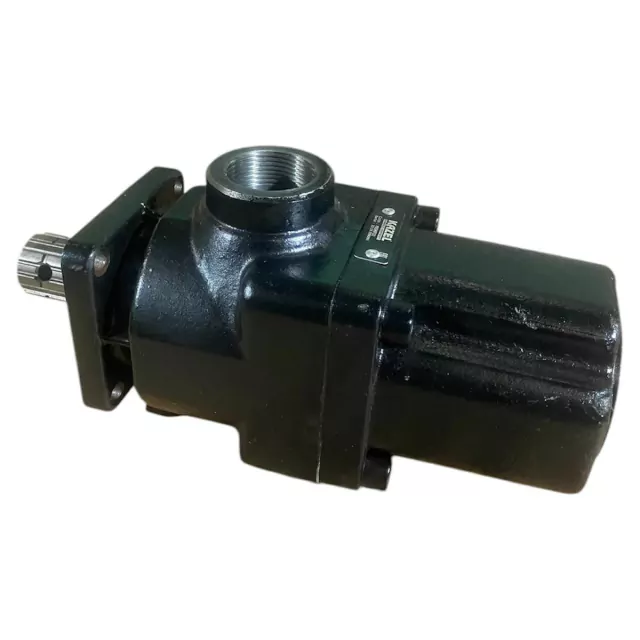

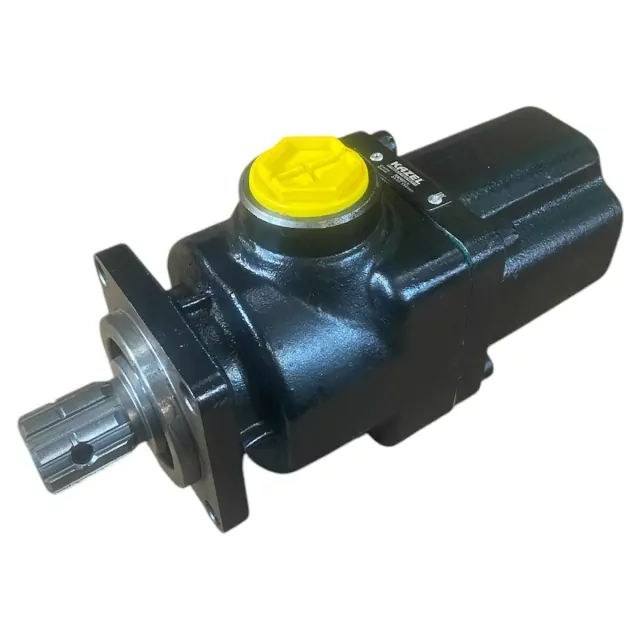

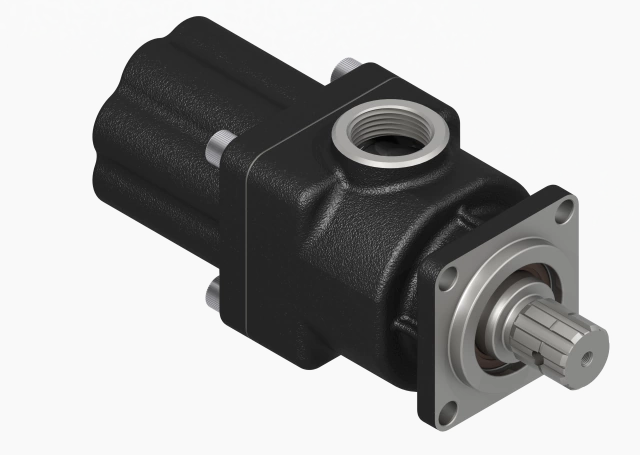

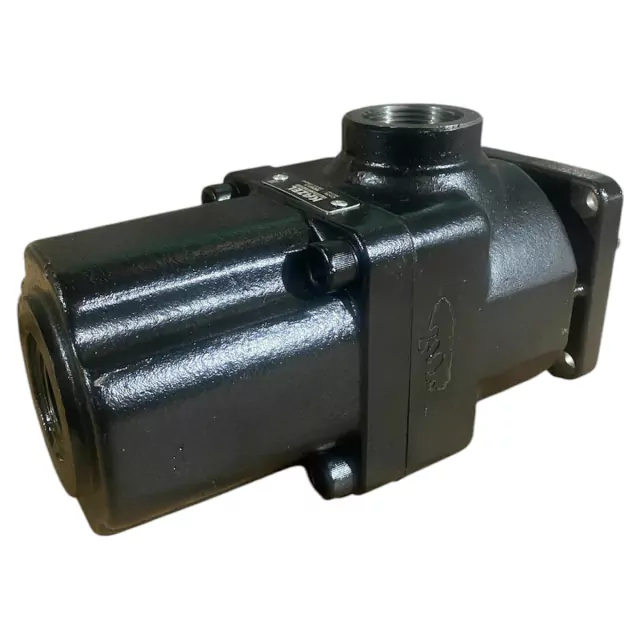

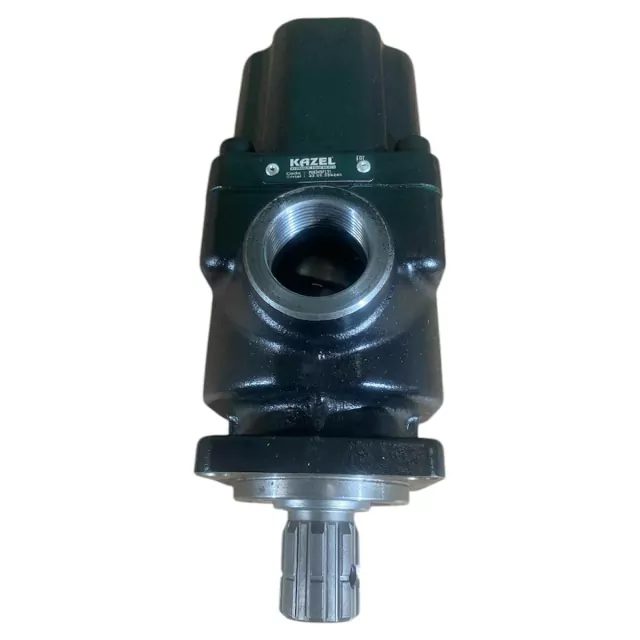

Axial Piston Pump 34 L/min
Kazel axial piston pump rated 34 L/min (9 GPM), for cranes, knuckle booms and aerial bucket lifts.
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
Axial piston pumps hold pressure more steadily than gear pumps under varying load, which is what a boom or bucket needs when the operator is feathering a control. Genuine Kazel part. Before ordering, confirm the flow rating of your control valve and the size of your hoses and couplers — mismatched flow is the usual cause of a jerky boom.
Specifications
- Kazel part number
- P0834SF131
- Mounting
- Euro 8-tooth spline
- Direction of rotation
- Bi-directional
- Outlets
- Rear and side
- Displacement
- 34 L/min (9 GPM)
- Max. continuous pressure
- 350 bar (5,076 PSI)
- RPM
- 300
- Max. speed
- 1800

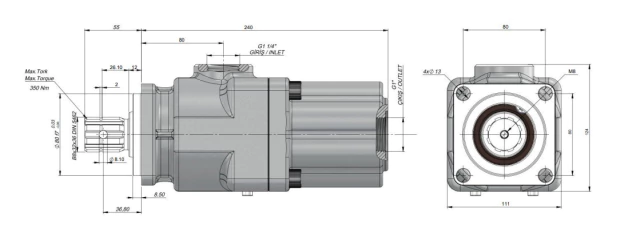

- Port sizes
- Side 1¼" · Rear 1"
Related products
Parts commonly specified alongside this one.

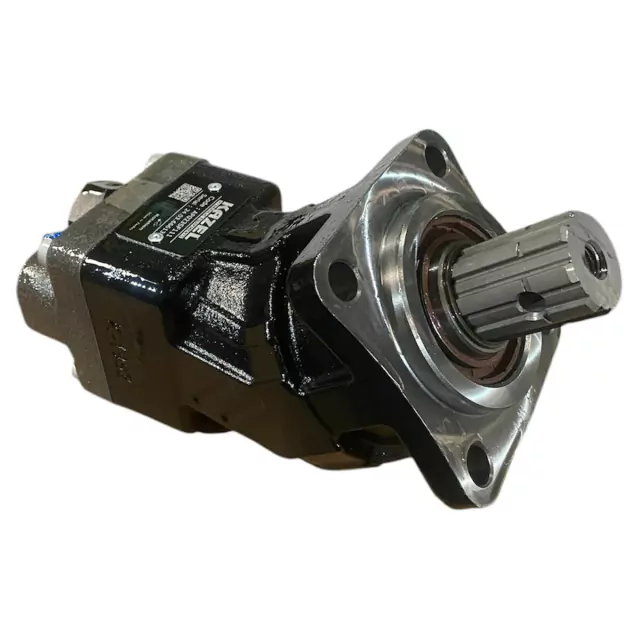

Bent-Axis Piston Pump 23 L/min · CCW
Kazel AP023SF121 bent-axis piston pump, 23 L/min (6 GPM), counterclockwise.

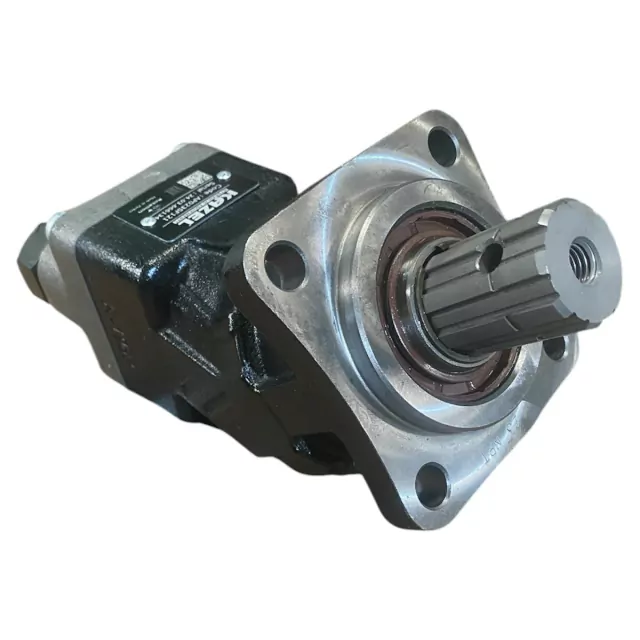

Bent-Axis Piston Pump 23 L/min · CW
