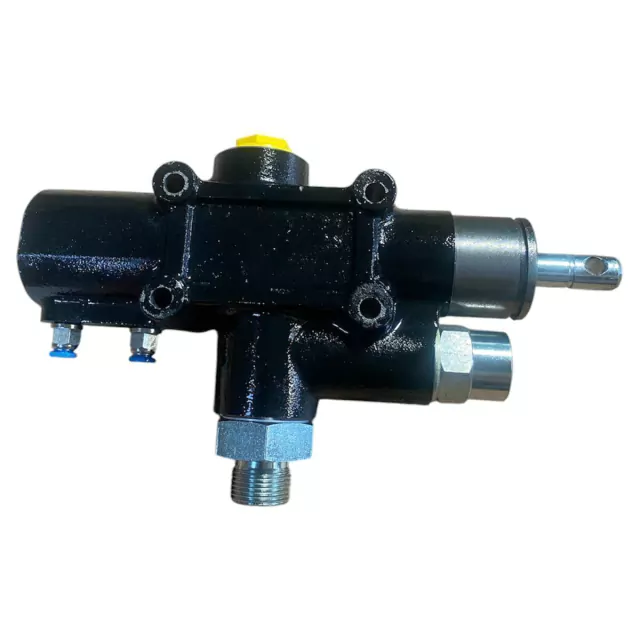

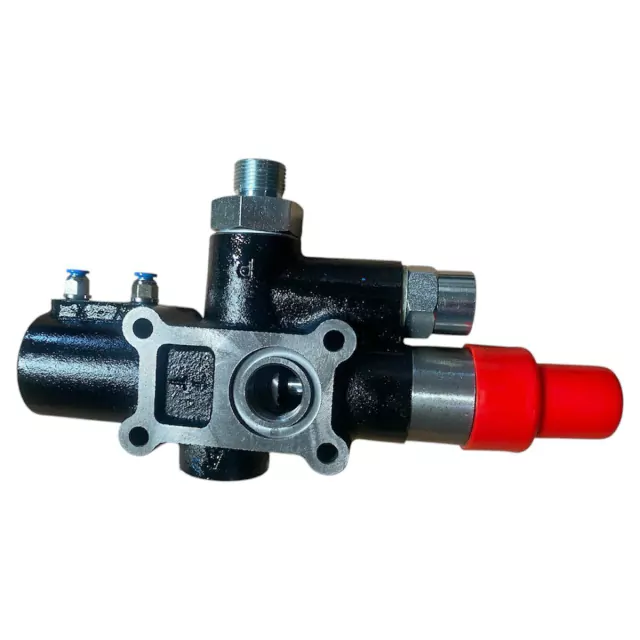

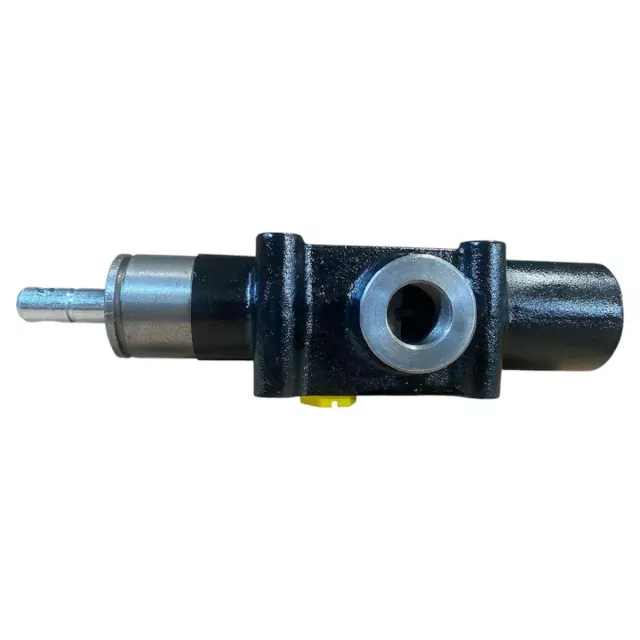

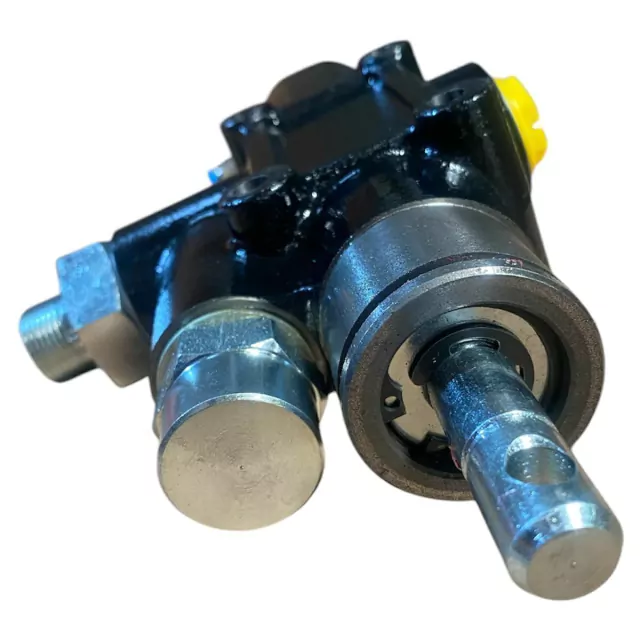

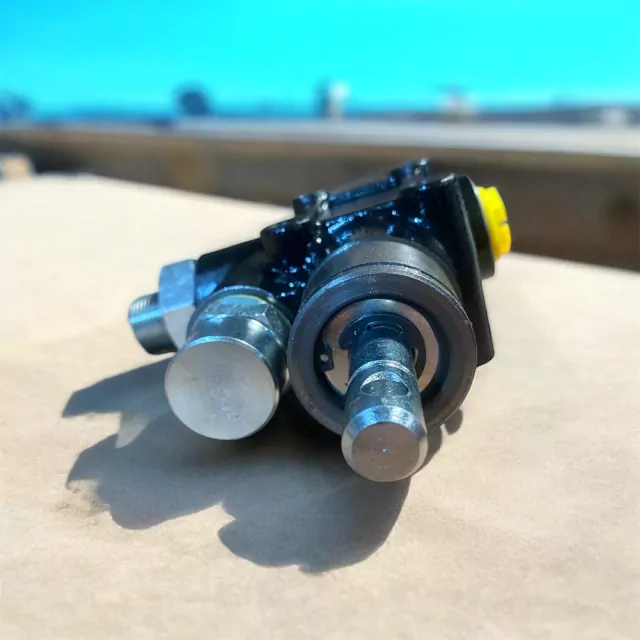

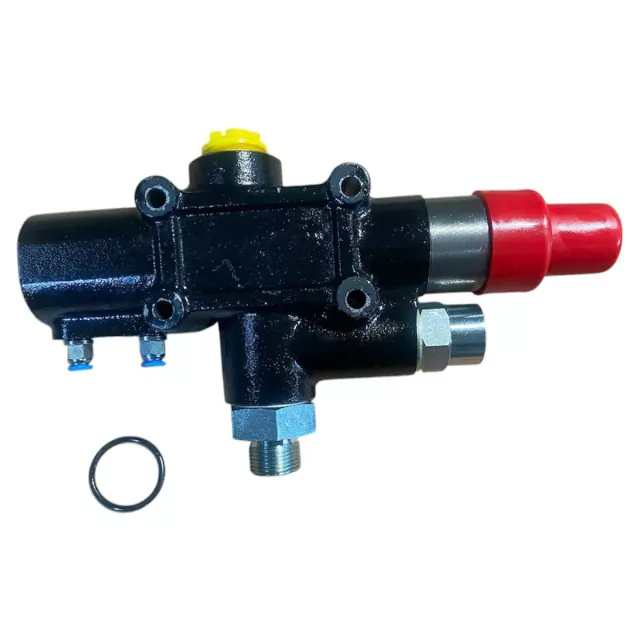

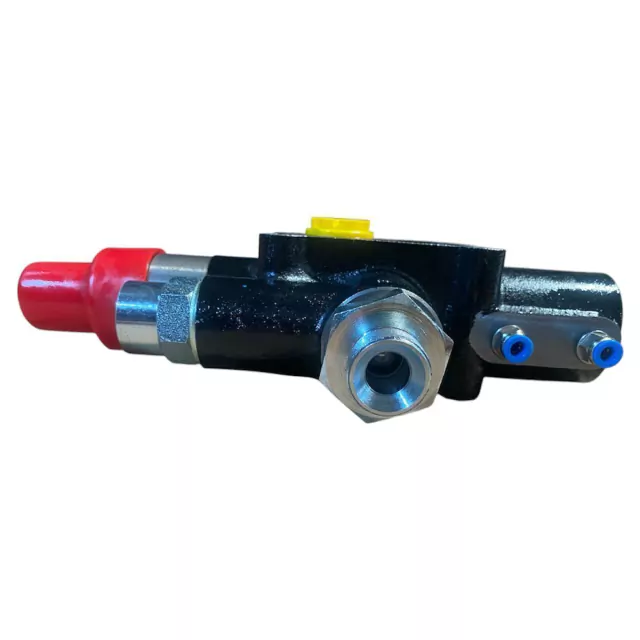

Kazel Tank-Mounted Directional Valve · VZM140
Genuine imported Kazel VZM140 directional valve, tank-mounted, 140 L/min (37 GPM) at up to 350 bar (5,076 PSI).
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
Mounts directly on top of the hydraulic reservoir, which removes a pair of hoses and the leak points that come with them. Pneumatically actuated at 7–12 bar (102–174 PSI) from the truck's air system. Genuine imported Kazel part, code VZM140. Suits hydraulic oil from -10°C to +80°C (14°F to 176°F) at 12–100 cSt.
Specifications
- Mounting
- On top of the hydraulic reservoir
- Flow rate
- 140 L/min (37 GPM)
- Max. working pressure
- 350 bar (5,076 PSI)
- Fluid
- -10°C to +80°C (14°F to 176°F)
- Viscosity range
- 12–100 cSt
- Pneumatic working pressure
- 7–12 bar (102–174 PSI)
