Valves

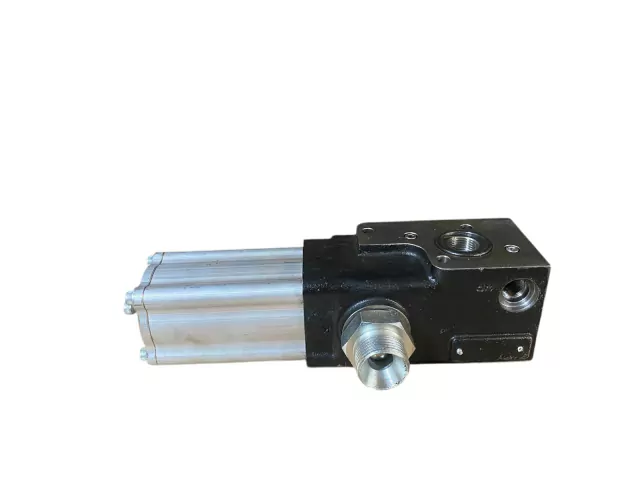

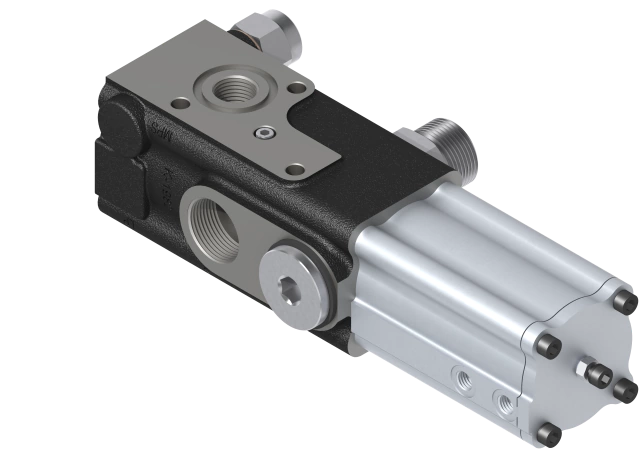

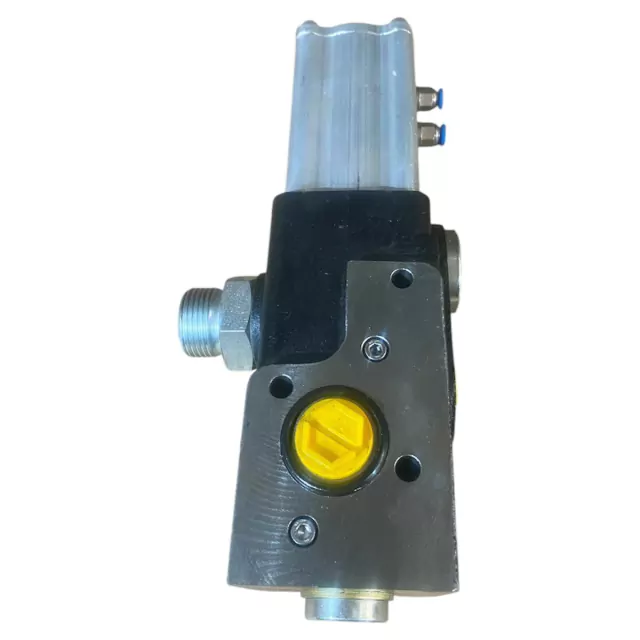

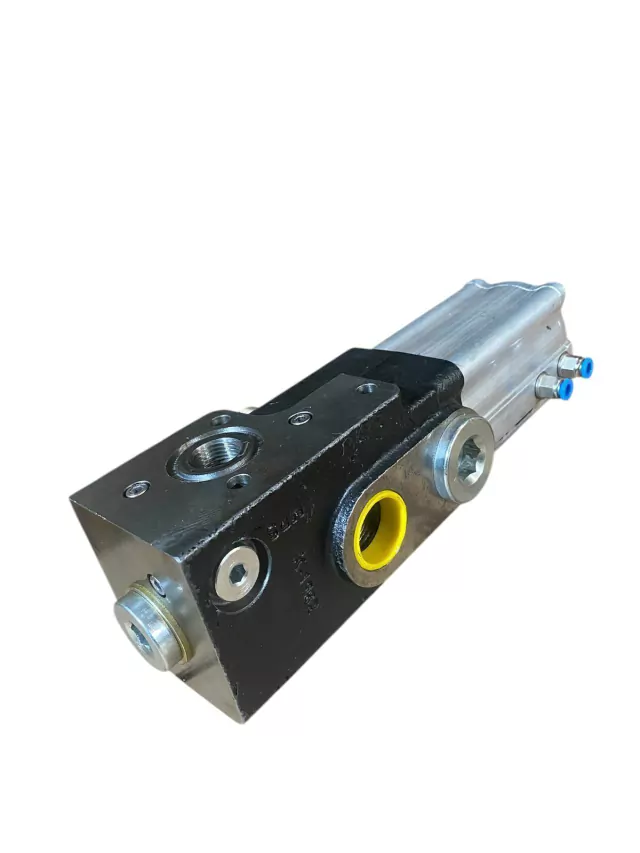

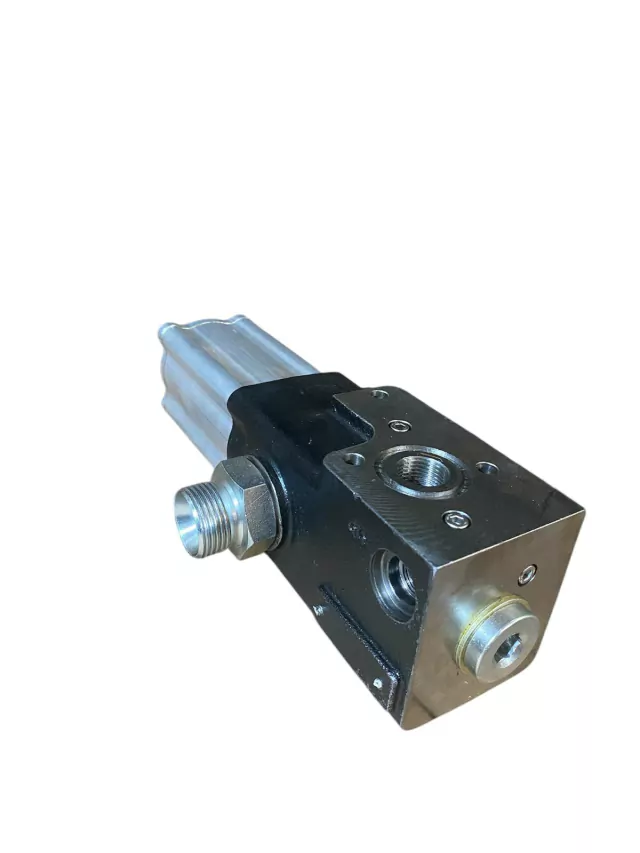

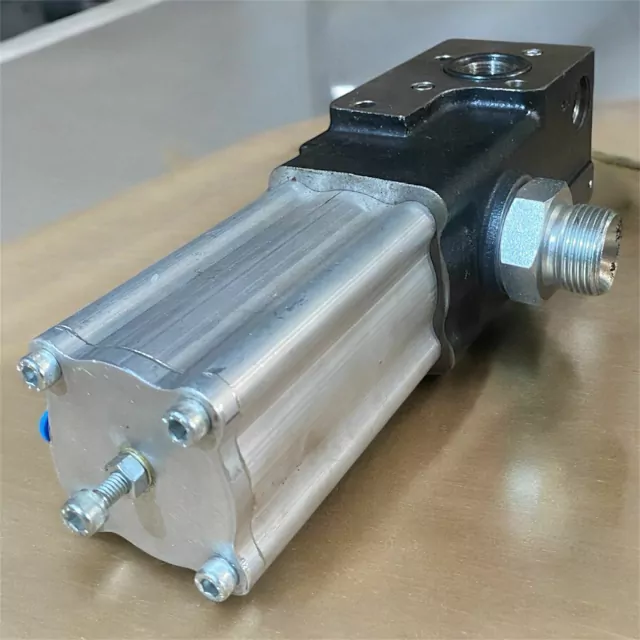

Walking Floor Directional Valve · 350 bar · 180 L/min
Tank-mounted directional valve for walking floor systems, 180 L/min (48 GPM) at up to 350 bar (5,076 PSI).
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
Sized for the sustained high flow a walking floor drive demands, rather than the intermittent duty of a dump body. Mounts on top of the reservoir, pneumatically actuated at 7–12 bar (102–174 PSI). Fluid range -10°C to +80°C (14°F to 176°F) at 12–100 cSt.
Specifications
- Mounting
- On top of the hydraulic reservoir
- Flow rate
- 180 L/min (48 GPM)
- Max. working pressure
- 350 bar (5,076 PSI)
- Fluid
- -10°C to +80°C (14°F to 176°F)
- Viscosity range
- 12–100 cSt
- Pneumatic working pressure
- 7–12 bar (102–174 PSI)
