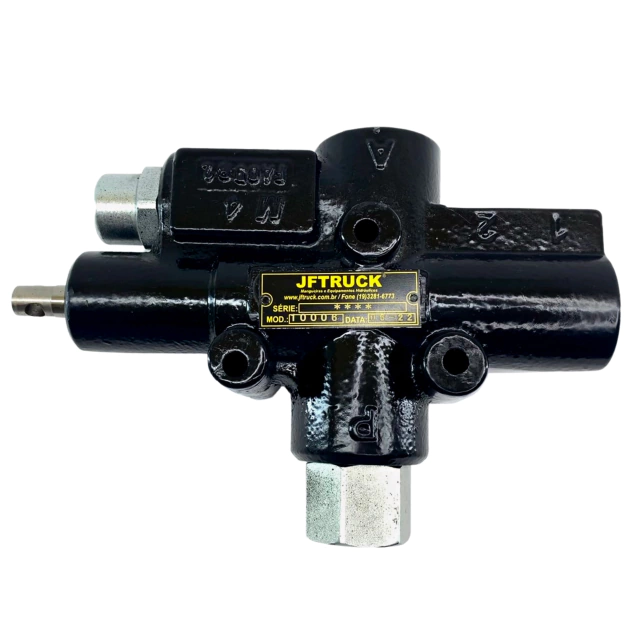

Directional Valve with Relief · 190 bar · 140 L/min
Part no. 06520
JF Hydraulic directional control valve with integrated relief, rated 190 bar (2,756 PSI) and 140 L/min (37 GPM).
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
Controls the dump cycle and protects the circuit in one body: the integrated relief opens before pressure can reach the cylinder's limit, which is what stops a jammed load from splitting a hose or a seal. Built for tandem-axle dump trucks and multi-stage dump semi-trailers. Weight 4.2 kg (9.3 lb), 7 × 15 × 21 cm (2.8 × 5.9 × 8.3 in).
Specifications
- Pressure
- 190 bar (2,756 PSI)
- Flow rate
- 140 L/min (37 GPM)
- Application
- Tandem-axle dump trucks and dump semi-trailers with multi-stage cylinders
Related products
Parts commonly specified alongside this one.

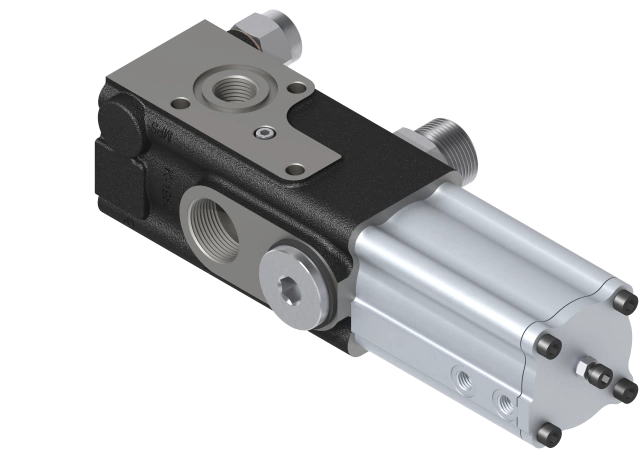

Walking Floor Directional Valve · 350 bar · 180 L/min
