Quick Coupler Set · 1" BSP · ISO 7241-1 Series A

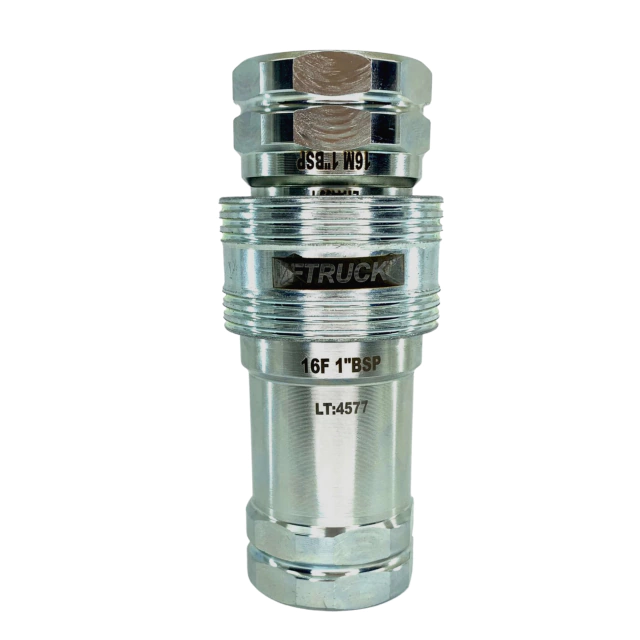

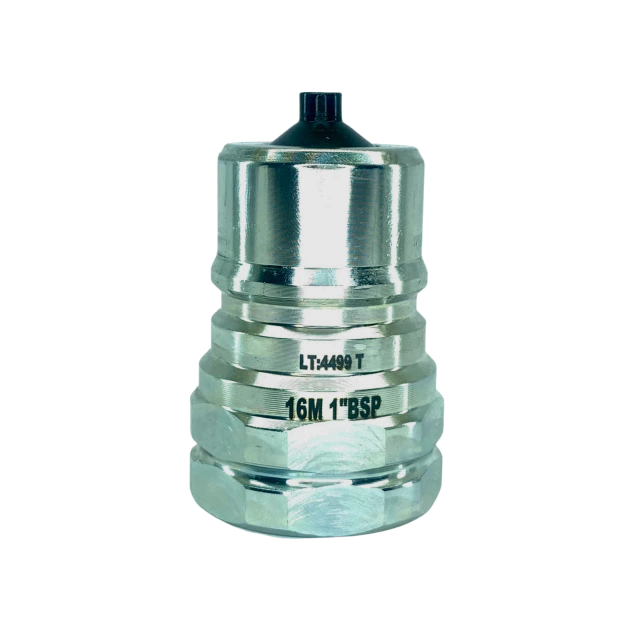

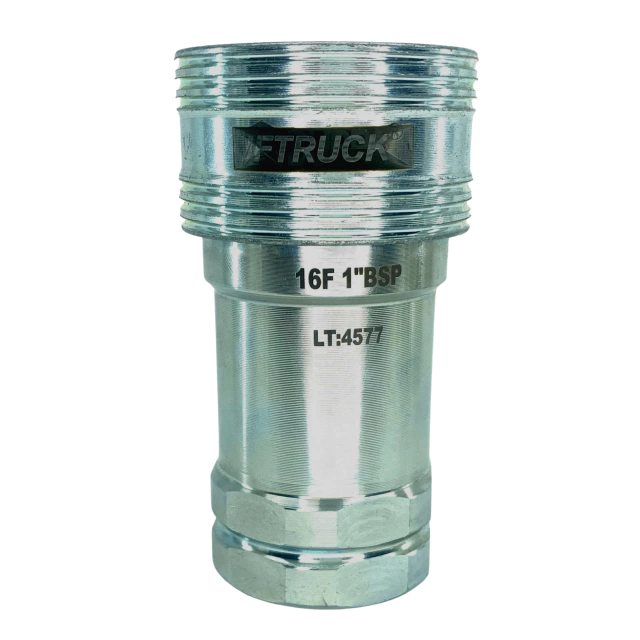

Male and female quick coupler set, 1" BSP thread, built to ISO 7241-1 Series A.
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
ISO 7241-1 Series A is the international interchange standard, so these couple with any Series A half regardless of brand. Zinc-plated carbon steel body with heat-treated internals, nitrile seals and a Teflon® anti-extrusion ring. Before ordering, confirm whether your system uses BSP or NPT threads — the two do not interchange, and this set is BSP.
Specifications
- Size
- 1"
- Thread
- BSP
- Application
- Dump trailers and semi-trailers
- Fluid
- Hydraulic oil
- Construction
- Zinc-plated carbon steel with heat-treated components
- Seals
- Nitrile rubber with Teflon® anti-extrusion ring
- Working temperature
- -25°C to 100°C (-13°F to 212°F)
- Note
- Please confirm whether you need BSP or NPT threads before ordering.
