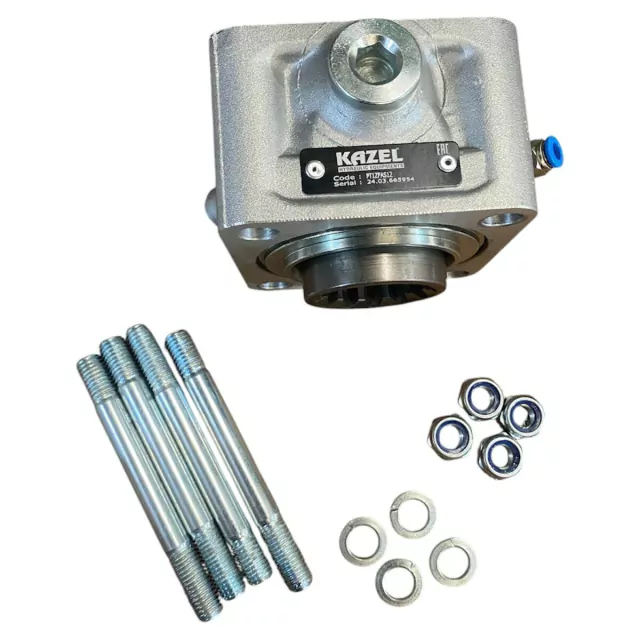

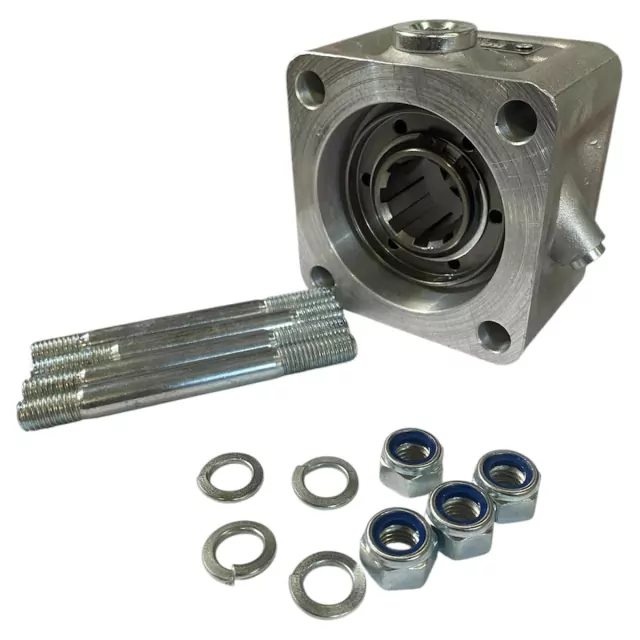

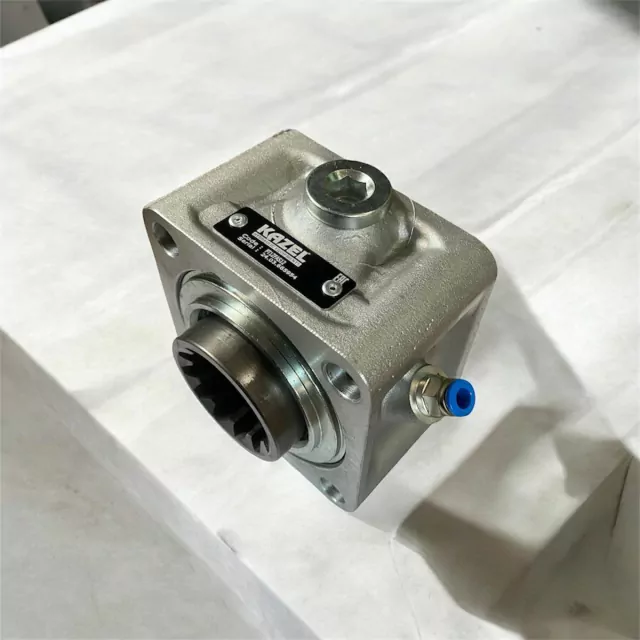

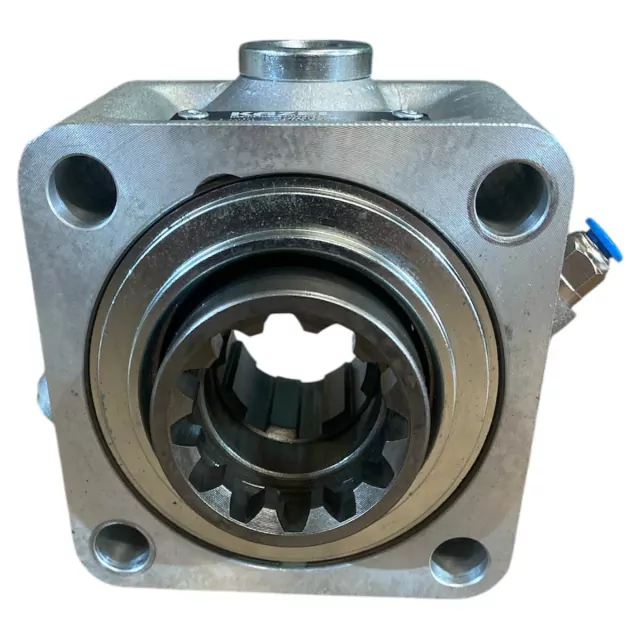

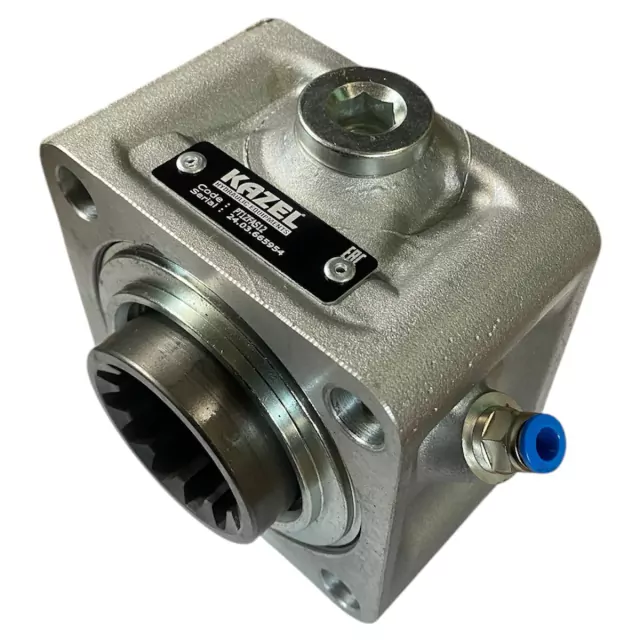

Kazel PTO PT1ZFAS12 · Direct Mount · 8-Tooth · 230 Nm
Kazel direct-drive power take-off rated 230 Nm (170 lb-ft), for Volvo and ZF transmissions, manual or automatic.
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
A direct-mount PTO for Volvo trucks and ZF gearboxes, in manual and automated versions. Direct drive means the pump bolts straight to the PTO with no intermediate shaft — fewer parts, less backlash, and no driveline angle to get wrong. Rated 230 Nm (170 lb-ft) continuous torque with an 8-tooth output.
Specifications
- Actuation
- Pneumatic
- Mounting side
- Rear
- Direction of rotation
- Clockwise (CW)
- Outlet
- 8-tooth spline
- Continuous torque
- 230 Nm (170 lb-ft)
