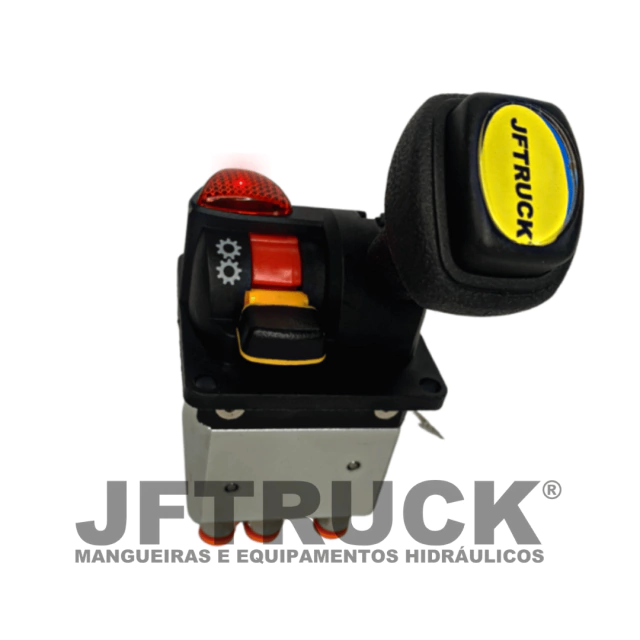

Joystick Safety Control
Part no. 00280
Pneumatic joystick control with automatic lockout, working with the directional valve to control dump speed and stop the body at any point of travel.
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
Works with the directional valve to give the operator proportional control of the dump cycle — speed up, slow down or stop the body at any point, raising or lowering. The automatic lockout is the safety feature that matters: it prevents accidental engagement and disengagement of the PTO, which is how most unintended dump-body movements start. Aluminium and plastic body, HNBR seals, 0.5–12 bar (7–174 PSI) working pressure, 1/8" port. Note: mounting bracket and audible-visual alarm are not included.
Specifications
- Body material
- Aluminum and plastic
- Seal material
- HNBR
- Working pressure
- 0.5–12 bar (7–174 PSI)
- Ambient temperature
- -55°C to 180°C (-67°F to 356°F)
- Port size
- 1/8"
