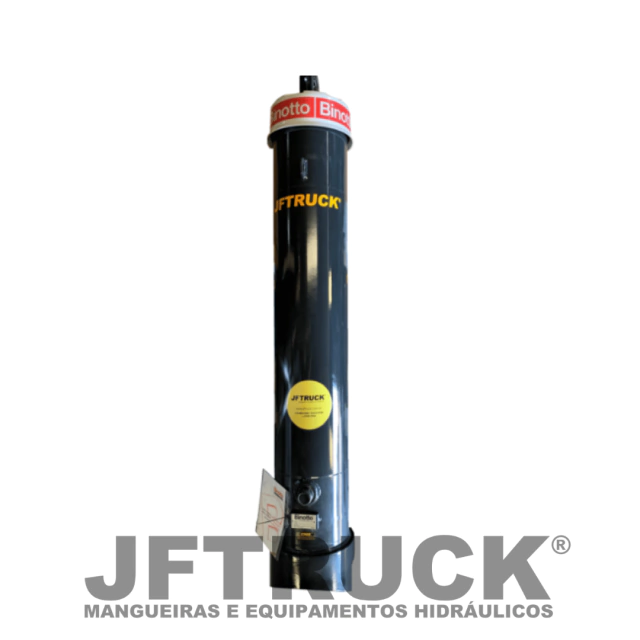

Binotto Front-Mount Telescopic Cylinder · 214 mm · 6 Stages · 6,823 mm
Part no. 0736
Genuine Binotto front-mount telescopic hoist, 214 mm (8.43 in) bore, 6 stages, 6,823 mm (268.6 in / 22.4 ft) stroke, 1,522 mm (59.9 in) retracted. Rated 220 bar (3,191 PSI).
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
The heavy end of the Binotto range: a 214 mm six-stage hoist for long dump bodies and high-capacity trailers. Six stages deliver 6.8 m of stroke from a cylinder that closes to just over 1.5 m, which is what makes a long body dump at full angle without the cylinder fouling the chassis. Minimum 20 μm chrome plating, 220 bar (3,191 PSI) maximum working pressure.
Specifications
- Category
- Cylinder
- Stages
- 6
- Chrome plating thickness
- 20 μm minimum
