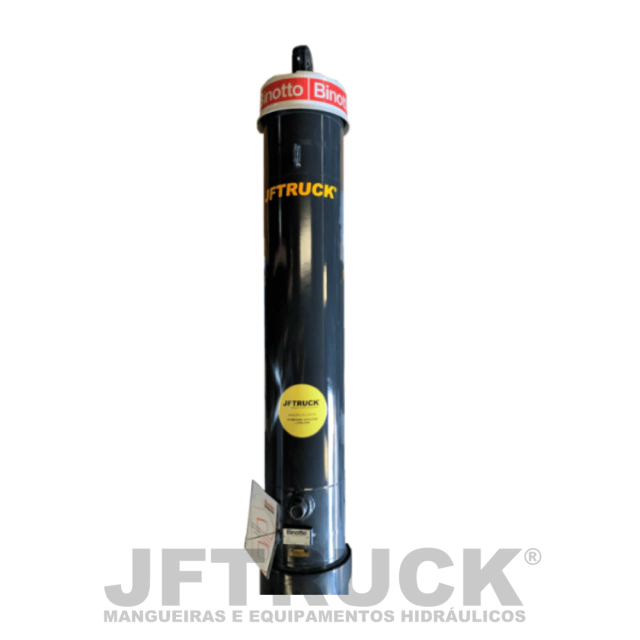

Binotto Front-Mount Telescopic Cylinder · 214 mm · 5 Stages · 7,524 mm
Part no. 01060
Longest-stroke hoist in the range: 214 mm (8.43 in) bore, 5 stages, 7,524 mm (296.2 in / 24.7 ft) stroke. First-stage force 345 kN (77,560 lbf), weight 396 kg (873 lb).
Request a quote for this product
Send us your details and we will come back with pricing and availability.
Description
The longest cylinder we stock, built for the longest dump trailers. First-stage force reaches 345 kN (77,560 lbf) — roughly 38.8 US tons of lift at the bottom of the cycle, where the load is heaviest. Working oil volume 188 L (49.7 gal), so confirm your reservoir can supply it without pulling air. Minimum 20 μm chrome plating, 220 bar (3,191 PSI) maximum working pressure.
Specifications
- Category
- Cylinder
- Stages
- 5
- Working volume
- 188 L (49.7 gal)
- Max. working pressure
- 220 bar (3,191 PSI)
- Cylinder weight
- 396 kg (873 lb)
- Chrome plating thickness
- 20 μm minimum
